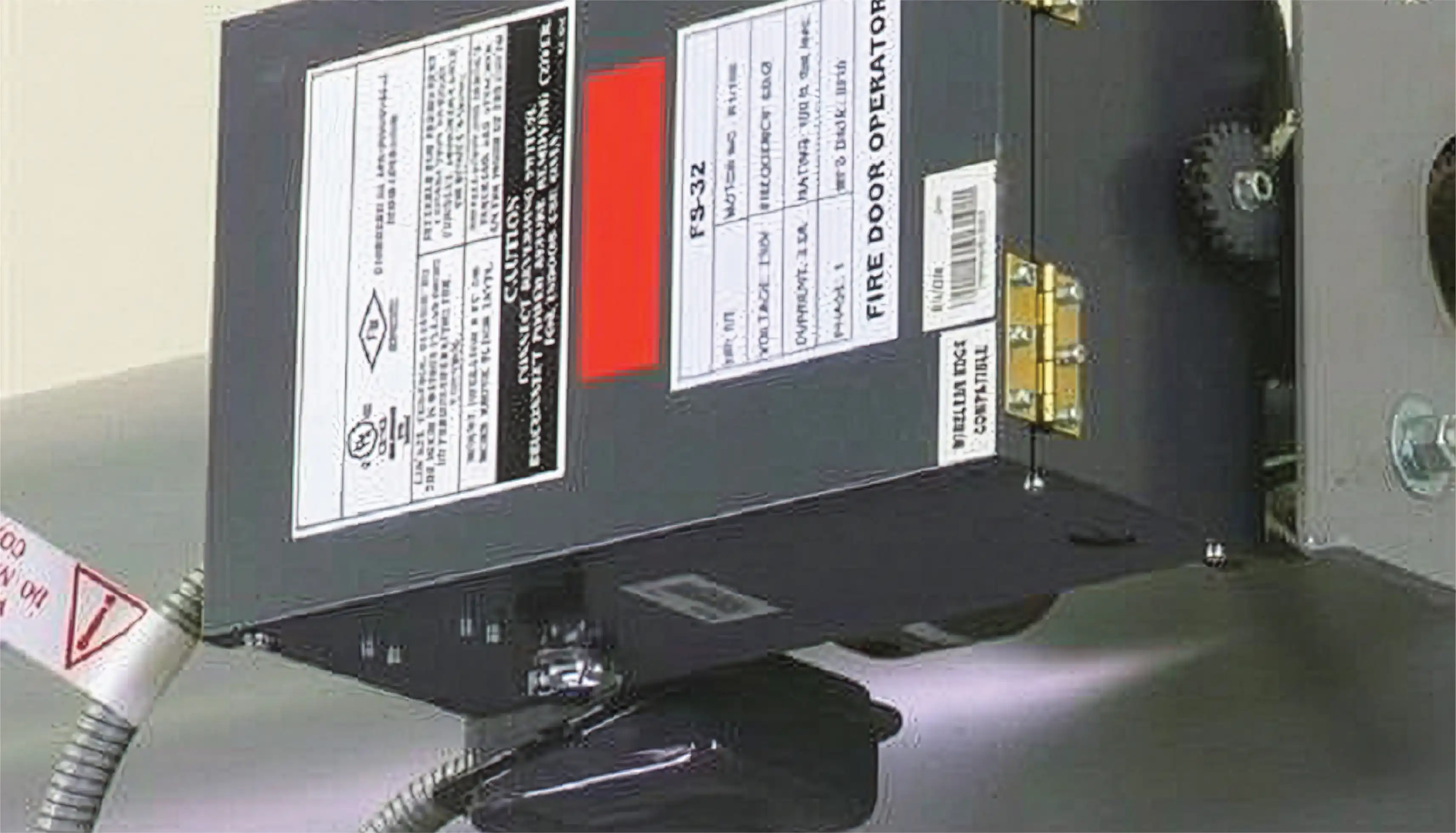

AlarmGard® Motor
The AlarmGard® Motor Operator is a bracket-mounted system engineered to safely close rolling fire doors upon an alarm activation or during a prolonged power failure. For enhanced safety, a programmable delay of 1 to 10 seconds can be set before the door descends at a controlled rate of 9 to 12 inches per second.
A key feature is its automatic reset capability; once the alarm is cleared or power returns, the door automatically returns to its pre-programmed open position. This function eliminates the significant time and expense required to manually reset each door after an event. The AlarmGard operator is the ideal solution for fire doors in pedestrian thoroughfares, recessed installations, and any area where manual testing is impractical or where nuisance drops from temporary power outages must be prevented.
Enter your zip code to find your local dealer
Fire Door
CERD10
Technical Specifications
| Model | FSH-30EP | FSH-50EP | FSH-70EP | FSH-150EP |
|---|---|---|---|---|
| Horsepower | 1/2 HP | 1/2 HP | 3/4 HP | 1 1/2 HP |
| Voltage | 115V, 230V, 460V, 575V | 115V, 230V, 460V, 575V | 115V, 230V, 460V, 575V | 115V, 230V, 460V |
| Phase | 1 & 3 | 1 & 3 | 1 & 3 | 1 & 3 |
| Frequency | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
| Auxiliary Hand Chain | No | No | No | No |
50 Hz and additional 60 Hz configurations are available, but may require an additional lead time. Please contact factory for details.
Operator Cover
An operator cover will provide extra protection from dirt and offer an aesthetically pleasing option for an application that is not suitable for an exposed operator.
Wall Mounted Key Switch
A wall mounted key switch can be added for ease of drop testing.
- Compact size and light weight
- Directly notified by the fire alarm control panels or local detectors
- Fail-safe system
- Eliminates mechanical spring tension loss and complex resetting procedures which allows routine testing to take minutes instead of hours
- Automatically reset to normal operation upon clearing of the alarm signal and/or restoration of power
- Slow and controlled activated closing speed does not exceed 9"-12" per second
- Automatic open is selectable for a complete system restoration after activation
- Brake is automatically engaged in the closed position
- Pre-wired for door moving warning signal
- 0-10 seconds selectable time delay upon activation
- Can close and reverse on obstructions up to three times
- Dramatic cost savings when inspecting and performing drop testing - no manual labor needed
- Supplemental fusible link activation plunger
