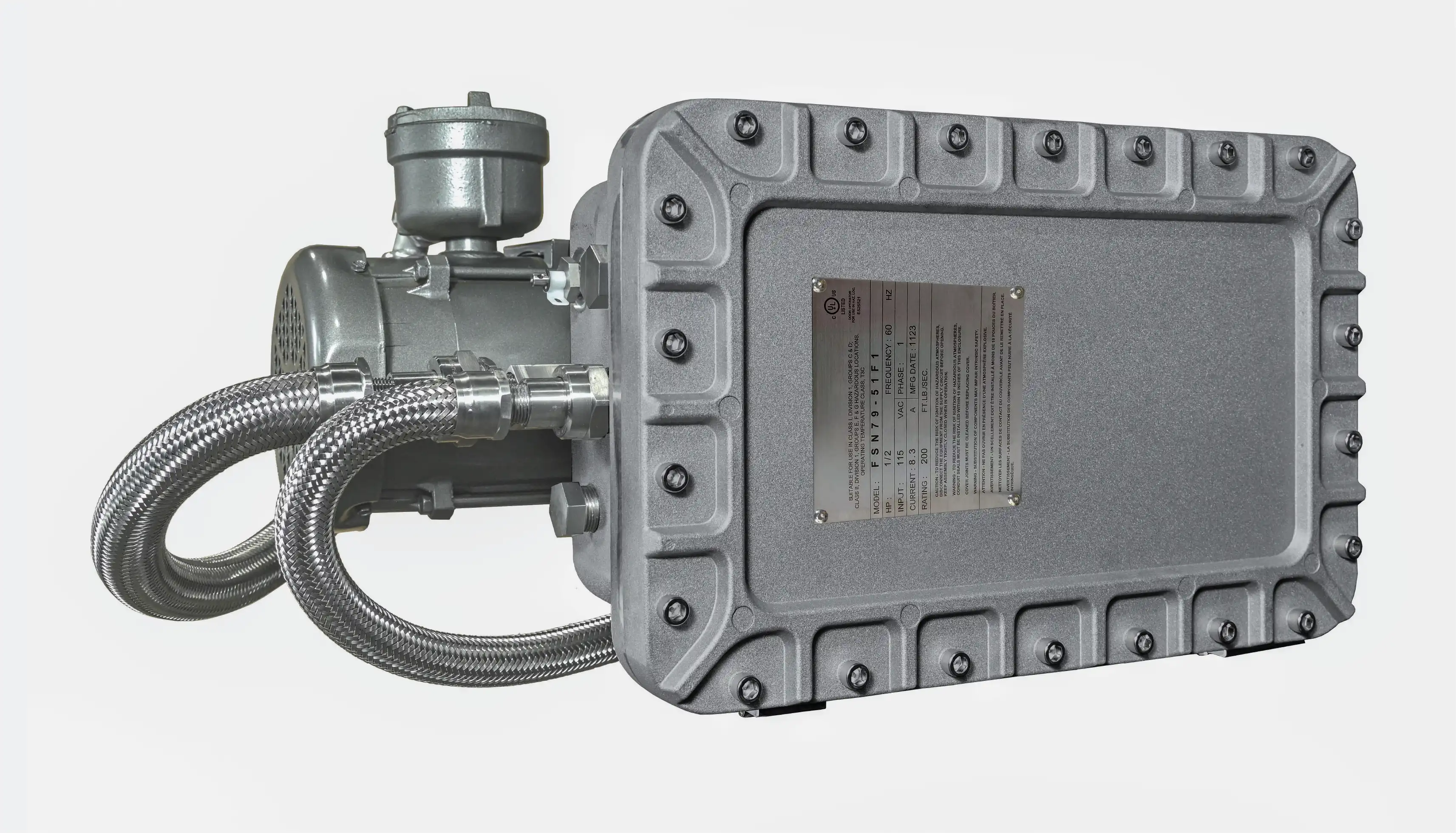

AlarmGard® NEMA 7/9 Service and Fire Door Operator
Built with the same reliable features as the FHN79/FGN79 and available for retrofit.
Standard features include:
- Integrated explosion-proof control box
- Dual isolated circuit design
- Linear drive system
- Gear box and solenoid actuated brake
- Motor and control circuits are pre-wired in the control box
Enter your zip code to find your local dealer
Fire & Service Doors
CERD10 & CERD11
CESD10 & CSRD10W
Technical Specifications
| Model | FSN79-50 | FSN79-70 | FSN79-150 | FSN79-200 | FSN79-500 | FSN79-750 |
|---|---|---|---|---|---|---|
| Horsepower | 1/2 | 3/4 | 1 | 1 1/2 | 2 | 3 |
| Voltage | 115V, 230V, 380V, 460V, 575V | 115V, 230V, 380V, 460V, 575V | 115V, 230V, 380V, 460V, 575V | 230V, 380V, 460V, 575V | 230V, 380V, 460V, 575V | 230V, 380V, 460V, 575V |
| Phase | 1 & 3 | 1 & 3 | 1 & 3 | 3 | 3 | 3 |
| Duty | 30 | 30 | 30 | 30 | 30 | 20 |
- Electronic extra limit switches connection points module
- Multiple sensing devices
- Intrinsically safe board
- Whole product series are listed under UL1203 & UL325 as a complete unit
- Protection for use in hazardous locations
- Intrinsically safe circuits allows for a usage of a monitored sensing edge (vs a N79) and standard push-button station (vs a N79) and do not require explosion proof conduit for install
- Class I, Division 1, Groups C & D; Class II, Division 1, Groups E, F, & G
- Failsafe operator
- Electrical fire alarm signal connection points
- Automatic reset after alarm clears
- Alarm test connection points
- Preset selectable safety edge reversing cycles
- Auto open after alarm clears
- Out NEMA 7/9 operators do not require additional explosion proof conduit for control station wiring that is required for other manufacturers of NEMA 7/9 operators
