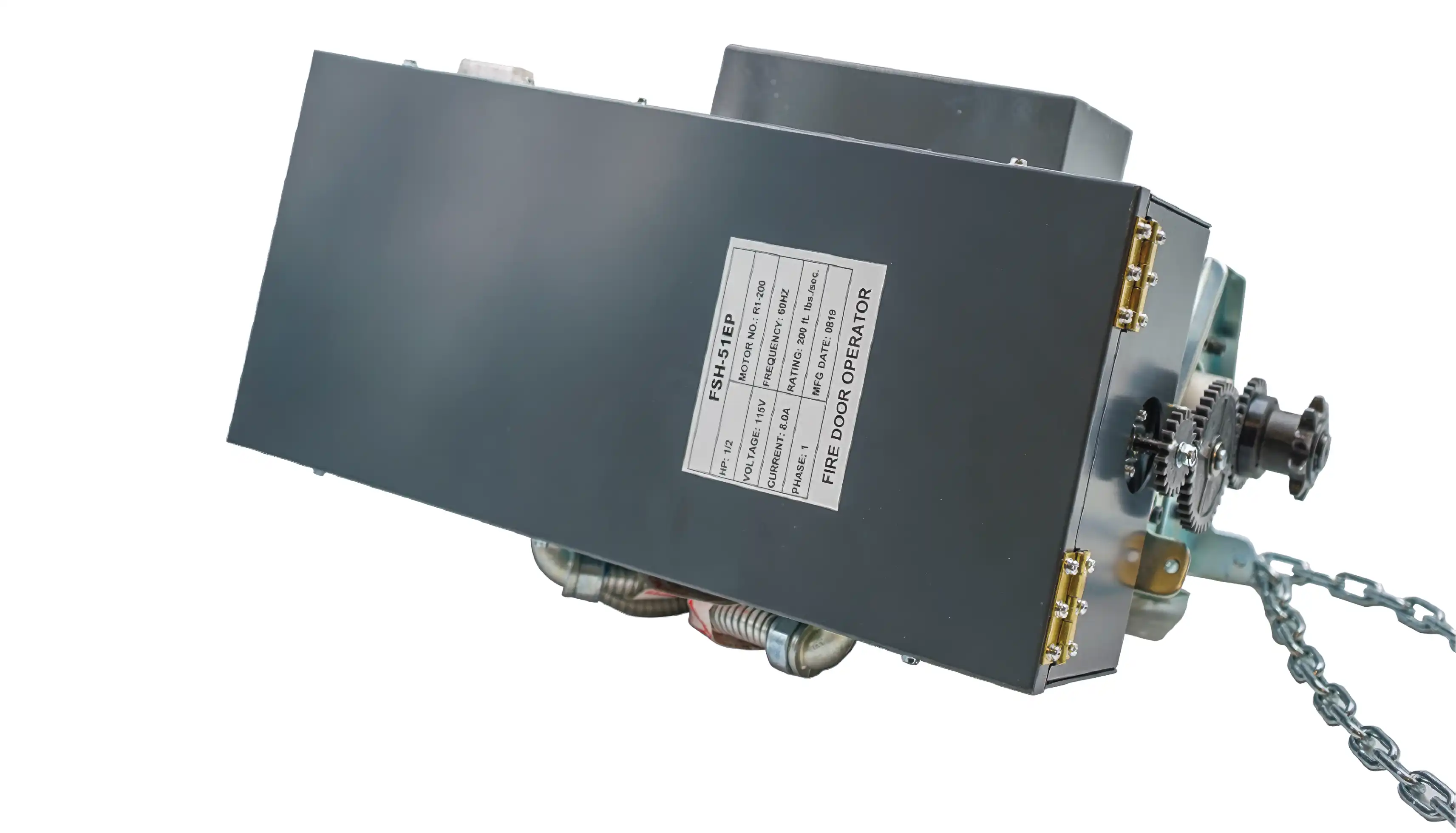

AlarmGard® Plus Motor
The AlarmGard® Plus Motor Operator is an advanced system that automatically closes rolling and insulated fire doors at a controlled speed during an alarm or power outage. After the alarm is cleared or power is restored, the doors reset automatically, saving the time and cost associated with manual resets.
This model enhances the standard AlarmGard with two key features: a battery backup that holds the door open for up to 8 hours during a power failure and an auxiliary hand chain for manual operation. It is the ideal solution for areas with high foot traffic, recessed installations, or any location where manual testing is impractical and where nuisance drops from temporary power loss must be avoided.
Enter your zip code to find your local dealer
Fire Door or Insulated Fire Door
CERD10 & CERD11
CERD20 & CERD21 (Insulated)
Technical Specifications
| Model | FSH-51EP | FSH-53EP | FSH-54EP | FSH-71EP | FSH-73EP | FSH-74EP |
|---|---|---|---|---|---|---|
| Horsepower | 1/2 HP | 1/2 HP | 1/2 HP | 3/4 HP | 3/4 HP | 3/4 HP |
| Voltage | 115V | 230V | 460V | 115V | 230V | 460V |
| Phase | 1 | 3 | 3 | 1 | 3 | 3 |
| Frequency | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz | 60 Hz |
50 Hz and additional 60 Hz configurations are available, but may require an additional lead time. Please contact factory for details.
Operator Cover
An operator cover will provide extra protection from dirt and offer an aesthetically pleasing option for an application that is not suitable for an exposed operator.
Wall Mounted Key Switch
A wall mounted key switch can be added for ease of drop testing.
- Auxiliary Chain Hoist
- Battery back-up - prevents the door from closing for 8 hours due to power failure
- Directly notified by the fire alarm control panels or local detectors
- Fail-safe system
- Eliminates mechanical spring tension loss and complex resetting procedures which allows routine testing to take minutes instead of hours
- Automatically resets to normal operation upon clearing of the alarm signal and/or restoration of power
- Slow and controlled activated closing speed does not exceed 9"-12" per second
- Automatic open is selectable for a complete system restoration after activation
- Brake is automatically engaged in the closed position
- Audible low battery warning
- 0-10 seconds selectable time delay upon activation
- Can close and reverse on obstructions up to three times
- Dramatic cost savings when inspecting and performing drop testing - no manual labor needed
- Supplemental fusible link activation plunger
