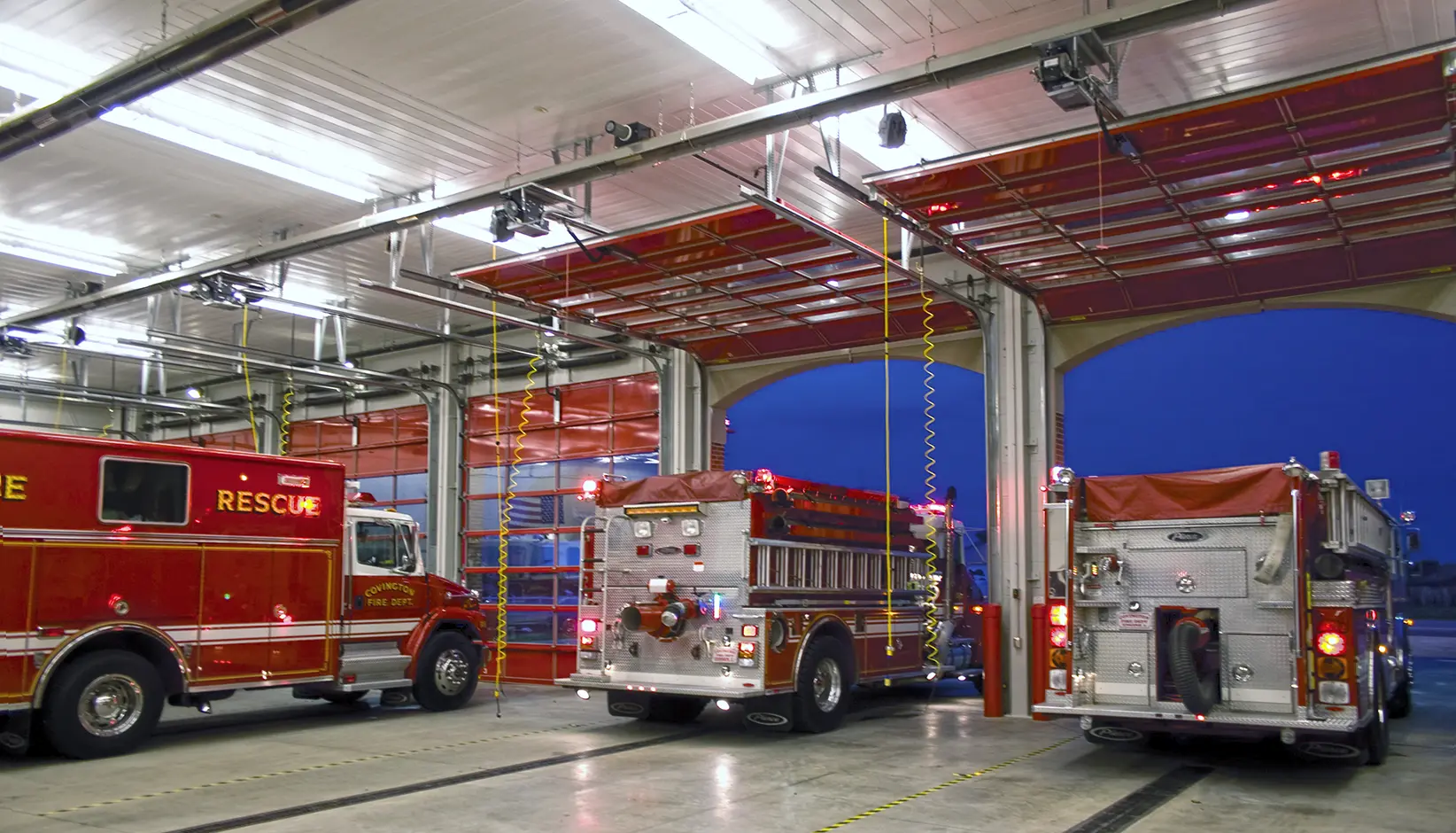

Clopay’s aluminum full-view doors are ideal for commercial buildings requiring visibility, access to natural lighting and a modern look. They're a great choice for applications ranging from restaurants and fire stations to car dealerships. These overhead doors come with an aluminum frame construction and also come in solid aluminum if privacy is preferred. You can also customize your door with a wide variety of window, color, design and performance options.

Architectural Series-Aluminum

Our aluminum full-view doors offer a sleek design with fewer lines and angles providing an aesthetically pleasing appearance.

Enter your zip code to find your local dealer

Clopay’s aluminum full-view doors are ideal for commercial buildings requiring visibility, access to natural lighting and a modern look. They're a great choice for applications ranging from restaurants and fire stations to car dealerships. These overhead doors come with an aluminum frame construction and also come in solid aluminum if privacy is preferred. You can also customize your door with a wide variety of window, color, design and performance options.

ModelThicknessSpacingR-ValueU-FactorMax Width*Max Height*
9042-1/8"Equal width & spacing--24'2"20'0"
904U***2-1/8"Equal width & spacing3.8**0.7320'2"20'0"
905/9062-1/8"Minimal stiles--22'2"16'0"
905U/906U***2-1/8"Minimal stiles--20'2"16'0"

*Maximum Width and Height values listed are Standard sizing.

**With insulated low-e argon filled glass

***With Clopay's proprietary polyurethane Intellicore insulation.

Tested door U-factor is in accordance with DASMA 105

Glass Panel Options
Full View 904 Gray
Full-View (904)
Solid Aluminum 904
Solid Aluminum (904)
905 Panel Clear Anodized
Full-View (905/906)
Glazing Material Options (904/904U)
Clear Glass Glazing Material Clopay Garage Doors
Clear Glass
Clear Glass Glazing Material Clopay Garage Doors
5/16" Clear Laminated Impact-Rated Glass**
Gray Tinted Glass Glazing Material Clopay Garage Doors
Gray Tinted Glass
Bronze Tinted Clopay Garage Door Glazing Material
Bronze Tinted Glass
Mirrored Glass Glazing Material Clopay Garage Doors
Mirrored Glass*
Obscure Glass Glazing Material Clopay Garage Doors
Obscure Glass
White Laminate Glass Glazing Material Clopay Garage Doors
White Laminate Glass*
Black Laminate Glass
Black Laminate Glass*
Frosted Glass or Acrylic Glazing Material Clopay Garage Doors
Frosted Glass Or Acrylic
Clear Acrylic Clopay Garage Door Glazing Material
Clear Acrylic
Gray Acrylic Glazing Material Clopay Garage Doors
Gray Acrylic
White Acrylic Glazing Material Clopay Garage Doors
White Acrylic
Clear Polycarbonate Glazing Material Clopay Garage Doors
Clear Polycarbonate
Bronze Polycarbonate Clopay Garage Door Glazing Material
Bronze Polycarbonate
Aluminum Panel Color Match Clopay Glazing Material Garage Door Option
Aluminum Panel (Color Matched)

*Mirrored and laminate not available in 1/2"

Glass options above only available on full-view sections. Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polygal thickness available in 5/8". Low-E available on insulated glass.

**Available in 904W8/904UW8 only

Glazing Material Options (905/905U)
Clear Glass Glazing Material Clopay Garage Doors
Frosted Acrylic
Commercial-Clear-Acrylic
Clear Acrylic
Clear Glass Glazing Material Clopay Garage Doors
Gray Acrylic
Clear Glass Glazing Material Clopay Garage Doors
White Acrylic
Clear Glass Glazing Material Clopay Garage Doors

Black Acrylic*



Hardcoated Acrylic options available

Thickness is 1/8"

*only available in 1/4" thick

Glazing Material Options (906/906U)
Clear Glass Glazing Material Clopay Garage Doors
Clear Tempered Glass
Clear Glass Glazing Material Clopay Garage Doors
Gray Tinted Tempered Glass
Clear Glass Glazing Material Clopay Garage Doors
Bronze Tinted Tempered Glass

Clear Glass Glazing Material Clopay Garage Doors





Low E glass availabl

Glass thickness available in 1/8", 1/4" and 1/2"

Color Options
Clear Aluminum Anodized
Clear Aluminum (Anodized)
Standard White
Standard White
Bronze-Painted
Bronze (Painted)
Chocolate-Painted
Chocolate (Painted)
Bronze-Anodized
Bronze Anodized*
Black-Anodized
Black (Anodized)*
Dark-Bronze-Anodized
Dark Bronze Anodized*
Request Color Samples

*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.

Custom powder coat, Color Blast®, and anodized finishes available.

Premium finishing options include:
  • RAL color powder coat
  • 187 different powder coat offerings
  • Custom Colors with Color Blast® Garage Door Paint System
  • Bronze, dark bronze, black or custom color anodized finishing
Performance Options Available
Commercial Options
Double-end hinge
Commercial Options
3" track
Commercial Options
High performance hardware features 10 gauge end hinges, heavy-duty top bracket and 3" sealed roller with 5/8" stem
Commercial Options
Exhaust port can be cut into any type of solid sectional door. Available in select sizes.
WindCode
WindCode® reinforcement available up to W8 design pressure (DP) 52 PSF, depending on door configuration. Doors tested 50% greater than DP.
Commercial Options
25,000, 50,000 or 100,000 cycle springs available.

Model 904/904U, 905/905U, 906/906U
Exterior Skin Pattern: Recessed aluminum panel
Exterior Aluminum Gauge: 6063-T5 Aluminum
Rails and Stiles: Polyurethane Insulated (904U, 905U, 906U only)
Colors: Clear Aluminum (Anodized), Standard White, Bronze (Painted), Chocolate (Painted), Bronze (Anodized), Dark Bronze (Anodized)
Limited Warranty: 5-Year Finish / 1-Year Material and Workmanship / 1-Year Hardware
Avante Construction
Made of 2-1/8” durable commercial grade aluminum, making it virtually maintenance-free and long-lasting.
Avante Construction
Insulated models made of 2-1/8" durable commercial grade aluminum with polyurethane insulation
Section Joint
Tongue-and-groove with integral joint seal for further reduction of air and water infiltration.
Avante Construction
Smooth flat frame edge design for a more contemporary look.
Section Joint
Reinforcing fin included on doors wider than 14’. Doors 12’ and under do not use built-in reinforcing fin. Usage on widths 12’2” to 14’ depend upon glass weight. WINDCODE® doors may vary.

Model

BIM

Shop Drawing

Specs

Installation Manual

Warranty

Model 904

BIM

RFA

Shop Drawing

PDF

Specifications

DOC

Installation Manual

PDF

Warranty

PDF

Model 904U

BIM

RFA

Shop Drawing

PDF

Specifications

DOC

Installation Manual

PDF

Warranty

PDF

Model 905

BIM

-

Shop Drawing

-

Specifications

DOC

Installation Manual

PDF

Warranty

PDF

Model 905U

BIM

-

Shop Drawing

-

Specifications

DOC

Installation Manual

PDF

Warranty

PDF

Model 906

BIM

-

Shop Drawing

-

Specifications

DOC

Installation Manual

PDF

Warranty

PDF

Model 906U

BIM

-

Shop Drawing

-

Specifications

DOC

Installation Manual

PDF

Warranty

PDF

Brochure Model 905/905U/906/906U

Brochure Model 905/905U/906/906U

Models 905 and 906 aluminum full-view doors boast a sleek panel design with fewer lines and angles.

Explore Brochure
904 Brochure

904 Brochure

Model 904 and 904U’s design-forward look is enhanced with well-balanced stile profiles and contemporary lines.

Explore Brochure
Brochure Commercial Idea Book

Brochure Commercial Idea Book

At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.

Explore Brochure

Commercial Hardware

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware, take a look at Options.

  • 14 gauge hinges
  • Commercial 10 ball steel rollers with options for nylon tire rollers
  • 10,000 cycle torsion springs
  • Steel step plate and lift handle for easy operation
  • Inside slide lock for increase security
  • Galvanized aircraft cables with 7:1 safety factory
  • 2” or 3” track in a variety of configurations to meet building design requirements

Commercial Track Applications

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.

Commercial Torsion Springs

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. Click here for details
