Clopay’s full-view series doors are ideal for commercial buildings requiring visibility, access to natural lighting and modern look. They're the perfect choice for everything from restaurants and fire stations to service stations and car dealerships. These overhead doors are available with aluminum or steel frame construction, providing options that ensure maximum durability and reliability. Customize your door with a wide variety of window, color, design and performance options.

Architectural Series-Steel

Our steel doors are perfect for any application requiring visibility, natural light, strength and energy efficiency.

Enter your zip code to find your local dealer

Clopay’s full-view series doors are ideal for commercial buildings requiring visibility, access to natural lighting and modern look. They're the perfect choice for everything from restaurants and fire stations to service stations and car dealerships. These overhead doors are available with aluminum or steel frame construction, providing options that ensure maximum durability and reliability. Customize your door with a wide variety of window, color, design and performance options.

ModelSection
Thickness
Exterior
Gauge
Section
Design

InsulationR-Value
Solid
R-Value
w/Glass
U-Factor
Solid
U-Factor
w/Glass
Max Width✭Max Height✭
37292"27Minor RibbedPolyurethane*18.48.00.190.3920'2"18'0"
37282"27FlushPolyurethane*18.48.00.190.3920'2"18'0"
37091-3/8"27 Minor RibbedPolyurethane*12.95.90.210.418'2"16'0"
37081-3/8"27 FlushPolyurethane*12.95.90.210.418'2"16'0"
32092"24 Minor RibbedPolystyrene9.14.40.240.4520'2"18'0"
32082"24 FlushPolystyrene9.14.40.240.4520'2"18'0"
31591-3/8"27 Minor RibbedPolystyrene6.53.40.30.4418'2"16'0"
31581-3/8"27 FlushPolystyrene6.53.40.30.4418'2"16'0"

Notes:
R-Values Solid calculated per DASMA TDS-163 on a solid door
R-values with Glass calculated per DASMA TDS-163 using weighted average with 3/4" insulated glass.
Tested door U-factor is in accordance with DASMA 105
*Clopay's proprietary polyurethane Intellicore insulation.
Doors are stucco embossed
All models contain thermal break
✭Maximum Width and Height values listed are Standard sizing.

Glass Panel Options
Plain Short
19-1/2” x 16”
Plain Long
42” x 16”
Modern Slim Windows
Modern Slim Windows*
Color Options
Avante-White-Painted
Standard White
Paint-Color-Almond
Almond
Paint-Color-DesertTan
Desert Tan
Paint-Color-Sandtone
Sandtone
Paint-Color-Bronze-Terratone
Bronze
Paint-Color-Mocha-Brown
Mocha Brown
Paint-Color-Gray
Gray
Paint-Color-Charcoal
Charcoal
Chocolate-Painted
Chocolate
Paint-Color-Black
Black*
Paint-Color-Trinar-White
Trinar® White*
Lustra-Black-Finish
Lustra Black*±
Lustra-Charcoal-Finish
Lustra Charcoal*±
Lustra-Silver-Finish
Lustra Silver*±
Request Color Samples
*Available on select models.
±Finish will have smooth texture.
Custom powder coat and Color Blast® finishes available.
Premium finishing options include:
  • Custom Colors with  ColorBlast® Garage Door Paint System
  • Bronze, dark bronze, black or custom color anodized finishing
Performance Options Available
Commercial Options
Double-end hinge
Commercial Options
3" track
High Performance
High performance hardware features 10 gauge end hinges, heavy-duty top bracket and 3" sealed roller with 5/8" stem
Commercial Options
Exhaust port can be cut into any type of solid sectional door. Available in select sizes.
WindCode
WindCode® reinforcement available up to W8 design pressure (DP) 52 PSF, depending on door configuration. Doors tested 50% greater than DP.
Extended Warranty
Upgrade your standard door with industrial-grade components.
Commercial Options
25,000, 50,000 or 100,000 cycle springs available.
Speciality Options Available
Mullions
Mullions
Carry-away, roll-away or swing-up mullions are available on select sizes.
Safe-T-Stop
ControlGard® SD Chain Hoist
The ControlGard® Chain Hoist features an integral braking system that only allows it to move when the user is actively pulling the chain, reducing the risk of expensive door damage and increasing the safety of users and those nearby.

All of our Steel Insulated Door models come with the following:

Joint Design: Tongue and groove section with continuous foam thermal break prevents cold or heat from passing through the section
Paint System:3-stage paint process delivers maintenance free finish that resists rust perforation
Limited Warranty:10-year paint / 10-year delamination / 1 year material and workmanship / 1 year hardware

Model 3728/3729

Section Design/Emboss:(3728) 2” thick stucco embossed steel with flush exterior skin pattern
(3729) 2” thick stucco embossed steel with minor ribbed exterior skin pattern
Steel Gauge: 27 exterior; 27 interior

3728-3729

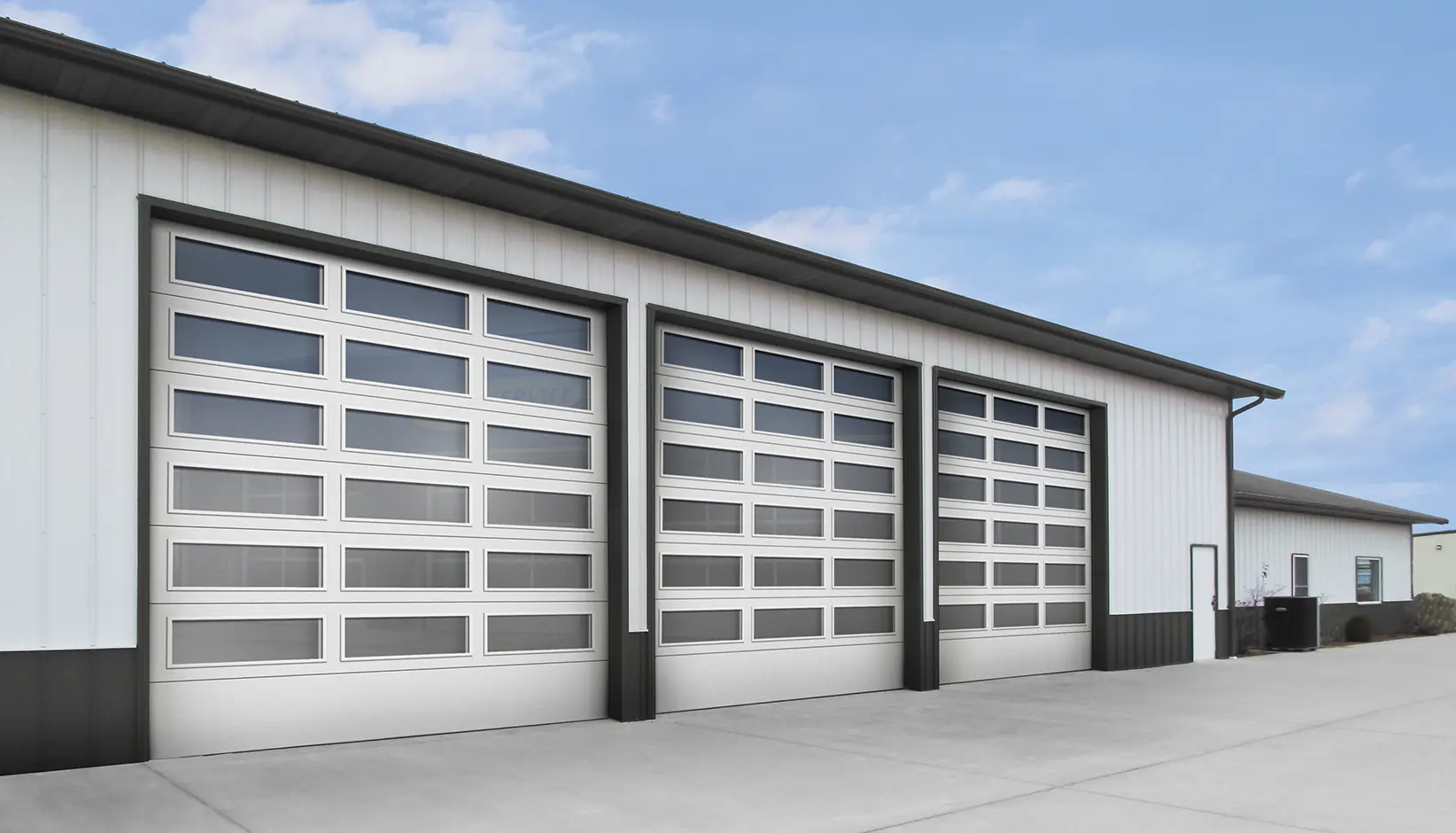

Model 3708/3709

Section Design/Emboss:(3708) 1 3/8” thick stucco embossed steel with flush exterior skin pattern
(3709) 1 3/8” thick stucco embossed steel with minor ribbed exterior skin pattern
Steel Gauge: 27 exterior; 27 interior

3708-3709

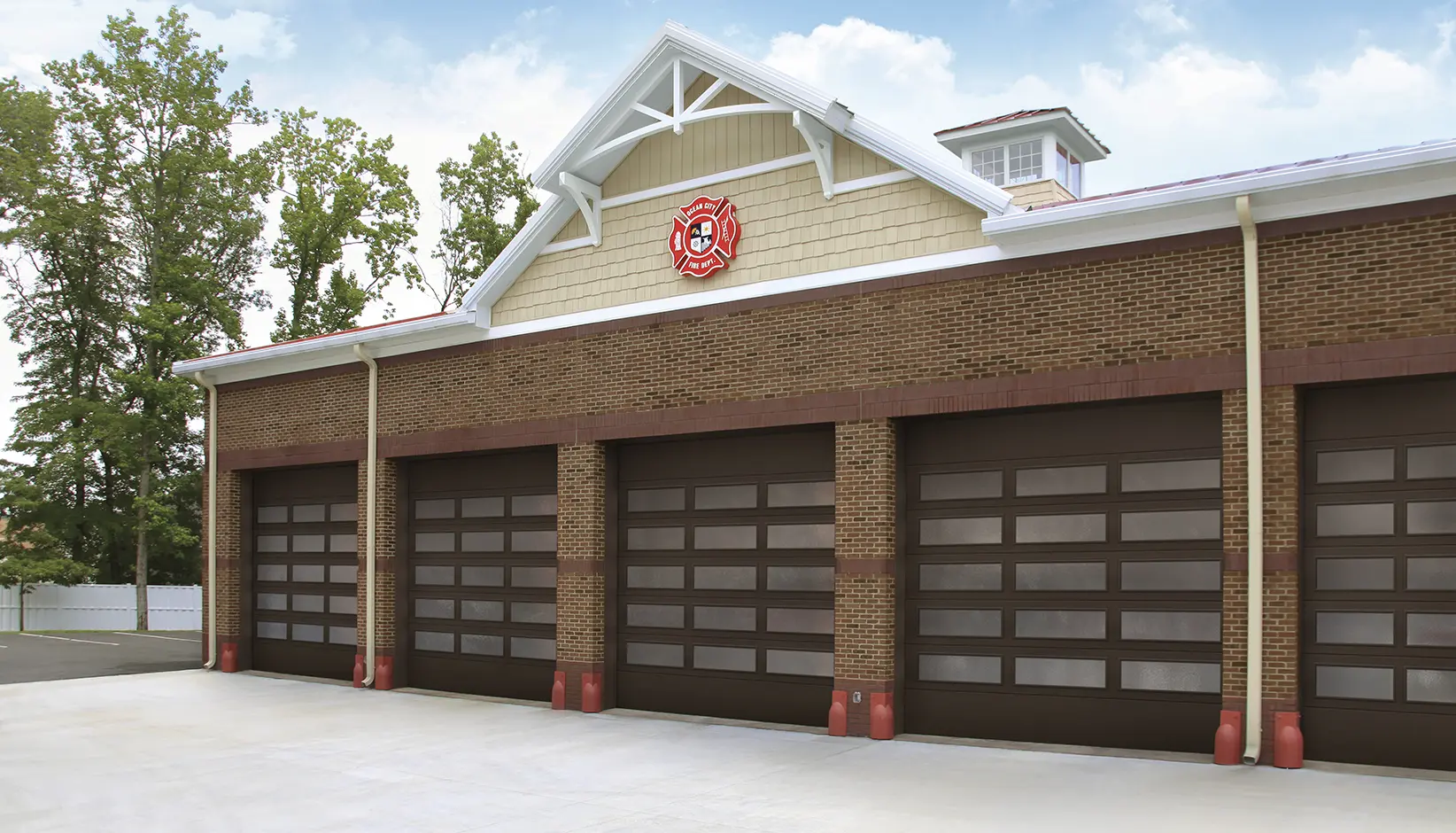

MODEL 3208/3209

Section Design/Emboss:(3208) 2” thick stucco embossed steel with flush exterior skin pattern
(3209) 2” thick stucco embossed steel with minor ribbed exterior skin pattern
Steel Gauge: 24 exterior; 27 interior

3208-3209

Model 3158/3159

Section Design/Emboss:(3158) 1 3/8” thick stucco embossed steel with flush exterior skin pattern
(3159) 1 3/8” thick stucco embossed steel with minor ribbed exterior skin pattern
Steel Gauge: 27 exterior: 27 interior

3158-3159



Model

BIM

Shop Drawing

Specs

Installation Manual

Warranty

Model 3158

BIM

RFA

Installation Manual

PDF

Warranty

PDF

Model 3159

BIM

-

Shop Drawing

PDF

Specifications

-

Installation Manual

PDF

Warranty

PDF

Model 3208

BIM

-

Shop Drawing

Download

Installation Manual

PDF

Warranty

PDF

Model 3209

BIM

-

Installation Manual

PDF

Warranty

PDF

Model 3708

BIM

-

Shop Drawing

Download

Installation Manual

PDF

Warranty

PDF

Model 3709

BIM

-

Installation Manual

PDF

Warranty

PDF

Model 3728

BIM

-

Shop Drawing

Download

Installation Manual

PDF

Warranty

PDF

Model 3729

BIM

-

Installation Manual

PDF

Warranty

PDF

Model EX3159

BIM

-

Shop Drawing

-

Installation Manual

-

Warranty

-

Brochure 3158-3159

Brochure 3158-3159

Steel insulated full view doors, models 3158 (stucco embossed, flush surface) and 3159 (stucco embossed, minor ribbed surface), are designed for use in commercial, retail, restaurant, and industrial facilities.

Explore Brochure
Brochure 3728-3729

Brochure 3728-3729

Clopay Models 3728 (flush/no ribs) and 3729 (with minor ribs) are a smart choice for applications requiring visibility, natural light, strength, and energy efficiency.

Explore Brochure
Brochure 3208-3209

Brochure 3208-3209

Models 3208 and 3209 provide visibility, natural light, and energy efficiency for commercial, retail, service, and industrial facilities.

Explore Brochure
Brochure 3708-3709

Brochure 3708-3709

Models 3708 and 3709 offer visibility, natural light, energy efficiency, and durability with Intellicore® polyurethane technology.

Explore Brochure
ControlGard®  SD Chain Hoist Brochure

ControlGard® SD Chain Hoist Brochure

Our ControlGard® SD Chain Hoist allows users to operate the door more safely.

Explore Brochure
Brochure Commercial Idea Book

Brochure Commercial Idea Book

At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.

Explore Brochure

Commercial Hardware

Commercial door closures are manufactured with durable hardware to meet the demands of high-traffic environments. All of our doors include the standard hardware listed below. To view hardware upgrades, select the “Options” tab.

  • 14-gauge hinges
  • Commercial 10-ball steel rollers with options for nylon tire rollers
  • 10,000 cycle torsion springs
  • Steel step plate and lift handle for simplified operation
  • Inside slide lock for improved security
  • 19 gauge steel hinge support plates
  • 18-gauge single end stiles; 16-gauge double end stiles
  • Galvanized aircraft cables with 7:1 safety factory
  • 2” or 3” track in a variety of configurations to meet building design requirements
Commercial Track Applications

Commercial and industrial buildings often need to meet code requirements and ADA standards for space. Avoid wear and tear on overhead doors and mitigate safety risks by providing your client with the best overhead door track for their application. Clopay track solutions include standard lift, low headroom with a front or rear mount, follow roof pitch lift, full vertical lift, and combination options. Learn more

Commercial Torsion Springs

Commercial and industrial overhead garage doors vary in size, design, and operation. Your torsion spring ensures that your door withstands the test of time and maintains peak performance. Clopay torsion spring options can be designed for the industry standard of 10,000 cycles or can be upgraded to 25,000, 50,000, or 100,000 expected life cycles.  Click here for details
