Roll-Up Sheet
Roll-Up Door

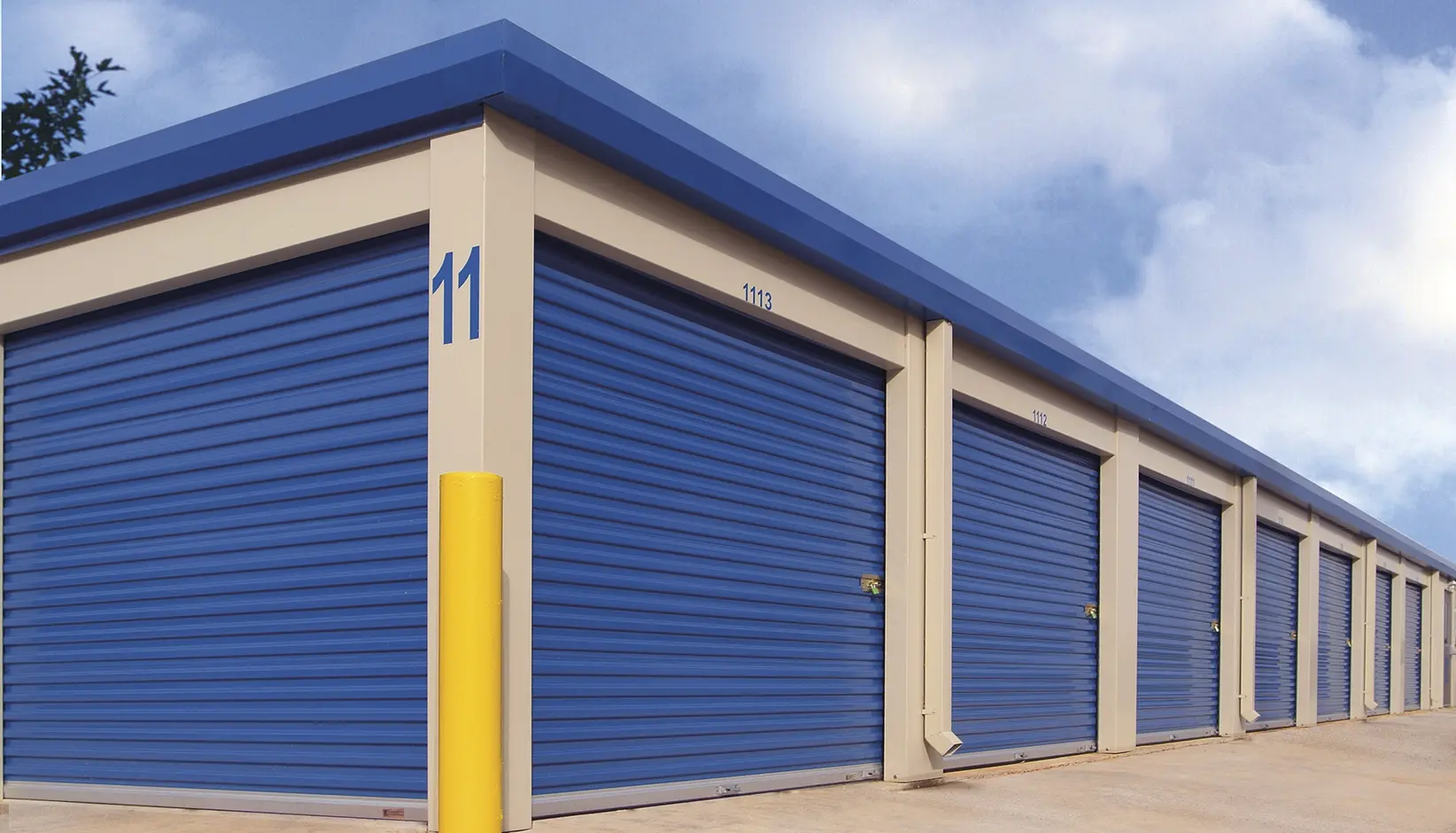

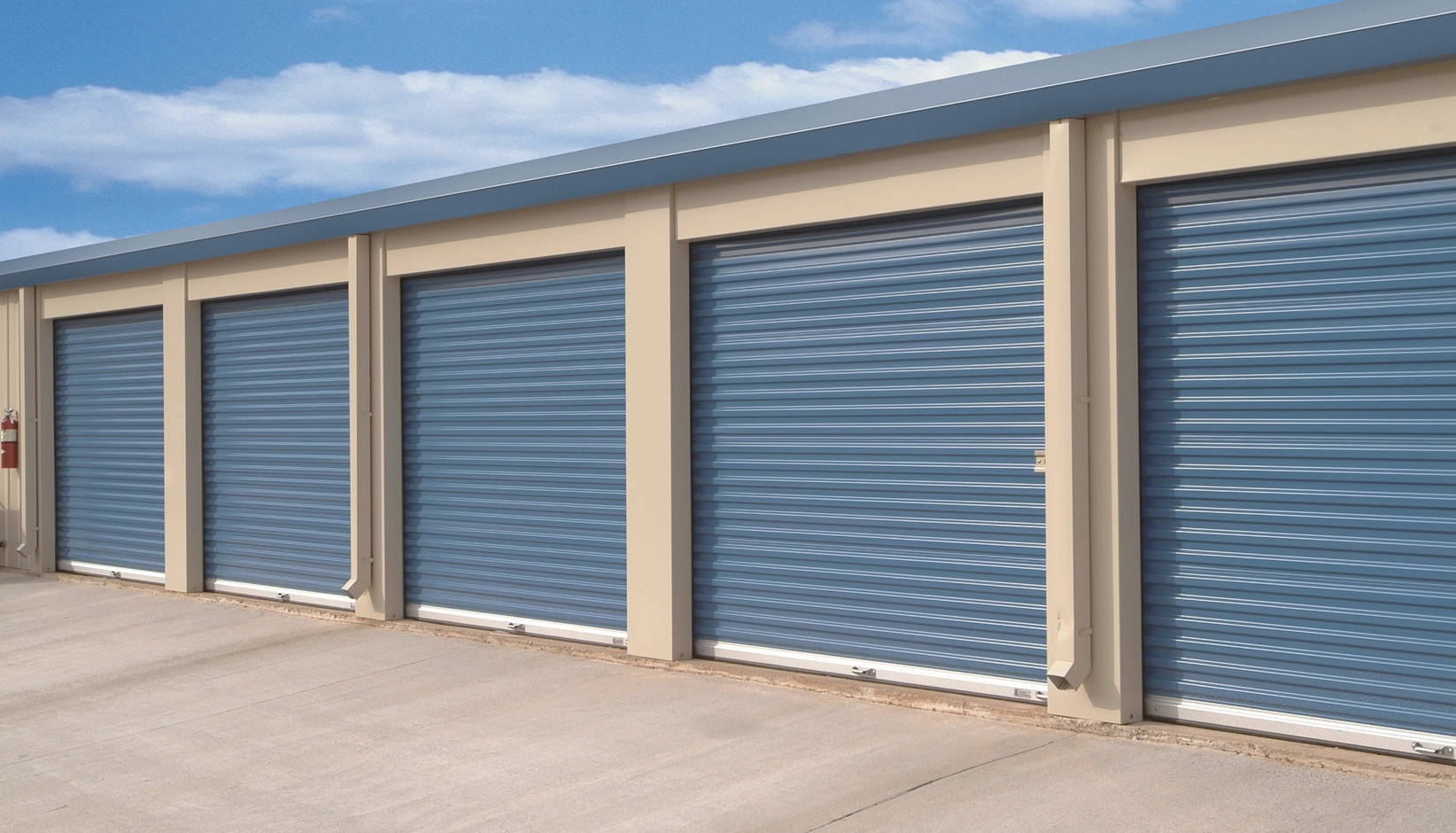

Roll-up sheet doors are ideal for mini warehouses and self-storage facilities with the goal of added security. Constructed from 26ga by 24 in wide sheets of steel roll formed with integral grooves that are hemmed together to form a continuous sheet guided vertically by roll formed guides.

Roll-Up Sheet Doors

Coiling steel sheet doors available in a range of gauges and colors

Enter your zip code to find your local dealer

Roll-up sheet doors are ideal for mini warehouses and self-storage facilities with the goal of added security. Constructed from 26ga by 24 in wide sheets of steel roll formed with integral grooves that are hemmed together to form a continuous sheet guided vertically by roll formed guides.

160CHeavy Duty12" Coil
157CMedium Duty12" Coil
150CLight Duty9" Coil



Constructed from 26ga by 24 in wide sheets of steel roll formed with integral grooves that are hemmed together to form a continuous sheet guided vertically by roll formed guides. The sheet door coils around a spring loaded shaft above the header as the door is opened. Designed with ease of installation in mind.

High Performance Hardware upgrade available

160CHeavy Duty12" Coil
157CMedium Duty12" Coil
150CLight Duty9" Coil



  • 26 gauge hot-dipped galvanized steel curtain with a baked-on silicone polyester top coat.
  • Roll-formed guides of hot-dipped galvanized steel (18 gauge 150C, 16 gauge 157C and 12 gauge 160C).
  • Self-lubricating wearstrips on curtain prevent metal-to-metal contact and muffle door noise.
  • Curtains are prepainted inside and out to inhibit rust. Hot-dipped, galvanized steel is painted with primer and given a tough oven-baked silicone polyester top coat, to provide the most rust-resistant steel door available.
  • Heavy-duty bottom bar withstands the external elements.
  • Full bulb-type bottom weatherstrip ensures proper fit along irregular floors.

Baked-On Silicone Polyester Paint

Standard Colors

Commercial Rolling Color
Glossy White
Commercial Rolling Color
White
Commercial Rolling Color
Silhoutte Gray
Commercial Rolling Color
Light Stone
Commercial Rolling Color
Desert Tan
Commercial Rolling Color
Sandtone
Commercial Rolling Color
Bronze
Commercial Rolling Color
Continental Brown
Commercial Rolling Color
Maroon
Commercial Rolling Color
Cedar Red
Commercial Rolling Color
Valentine Red
Commercial Rolling Color
Sierra Sunset
Commercial Rolling Color
Sunset Orange
Commercial Rolling Color
Teal
Commercial Rolling Color
Dark Teal
Commercial Rolling Color
Fern Green
Commercial Rolling Color
Evergreen
Commercial Rolling Color
Forest Green
Commercial Rolling Color
Royal Blue
Commercial Rolling Color
Polar Blue
Commercial Rolling Color
Coal Black
Commercial Rolling Color
Apple Lime Cocktail
Commercial Rolling Color
Safety Yellow
Commercial Rolling Color
LS Yellow
Commercial Rolling Color
EXR Wasabi
Commercial Rolling Color
Patriot Red
Commercial Rolling Color
Charcoal Gray
Commercial Rolling Color
Marine Blue
Commercial Rolling Color
Smart Blue
Colony Green
Colony Green



Model

BIM

Shop Drawing

Specs

Installation Manual

Warranty

150C

BIM

-

Shop Drawing

PDF

Specifications

DOC

Installation Manual

PDF

Warranty

PDF

157C

BIM

-

Shop Drawing

PDF

Specifications

DOC

Installation Manual

PDF

Warranty

PDF

160C

BIM

-

Shop Drawing

PDF

Specifications

DOC

Installation Manual

PDF

Warranty

PDF

150C, 157C, 160C Brochure

150C, 157C, 160C Brochure

Ideal for mini-warehouses and storage facilities, Clopay Roll-Up Sheet Doors are low-maintenance, long-lasting, and easy to install.

Explore Brochure
Brochure Commercial Idea Book

Brochure Commercial Idea Book

At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.

Explore Brochure

Need door help?

Our Architectural Design Support team has you covered!

Engage with our team of qualified professionals to address all of your door needs.
