EntryDefender Attack Large
EntryDefender Large

The EntryDefender® Door is engineered to safeguard government buildings, pharmaceutical and cannabis dispensaries, manufacturing facilities, and other high-security locations from threats for durations of 5, 15, or 60 minutes, in line with the U.S. Department of State Standard for Forced Entry SD-STD-01.01, Revision G (Amended). It is the only rolling door in the United States to meet these stringent criteria while offering architects and designers the flexibility to create large openings without sacrificing security. Though it may appear to be a standard rolling door, the EntryDefender® features a robust steel curtain with interlocking slats. When the door is closed, these slats compress to form a smooth surface, minimizing potential pry points. During an attack, the slats further engage to prevent separation, enhancing the door’s durability. Additionally, the door includes a reinforced bottom bar and a discreet locking system to prevent lifting. It also offers a static wind load of 125 psf. For commercial use only.

EntryDefender Door

The EntryDefender® Door is engineered to safeguard government buildings, pharmaceutical and cannabis dispensaries, manufacturing facilities, and other high-security locations.

Enter your zip code to find your local dealer

The EntryDefender® Door is engineered to safeguard government buildings, pharmaceutical and cannabis dispensaries, manufacturing facilities, and other high-security locations from threats for durations of 5, 15, or 60 minutes, in line with the U.S. Department of State Standard for Forced Entry SD-STD-01.01, Revision G (Amended). It is the only rolling door in the United States to meet these stringent criteria while offering architects and designers the flexibility to create large openings without sacrificing security. Though it may appear to be a standard rolling door, the EntryDefender® features a robust steel curtain with interlocking slats. When the door is closed, these slats compress to form a smooth surface, minimizing potential pry points. During an attack, the slats further engage to prevent separation, enhancing the door’s durability. Additionally, the door includes a reinforced bottom bar and a discreet locking system to prevent lifting. It also offers a static wind load of 125 psf. For commercial use only.

CPED0101 (05,15,60)

Aesthetics

AtmoShield™ Powder Coating – It is a textured finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added protection.

SpectraShield™ Powder Coating – It is a Polyester finish in more than 180 colors offering durability, aesthetics, superior finish life and cost effectiveness.


Safety & Protection

LED Light Kit – Provides a high-visible status indication for rolling doors and grilles.

Sensing Edge - Designed with a flexible black rubber TPE material, our sensing edge has two fins that form to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to over set the bottom door limit.

SmartSync™ Wireless Safety Edge – This is used to upgrade the existing sensing edge to wireless communication between the transmitter and the receiver. This eliminates the coiling cord in the door opening.



Resistance Rating

PED0101-05 : 5 minute resistance rating

PED0101-15 : 15 minute resistance rating

PED0101-60 : 60 minute resistance rating



Listings

U.S. Department of State Standard for forced entry SD-STD-01.01, Revision G (Amended) for 5, 15 and 60 minute attacks.

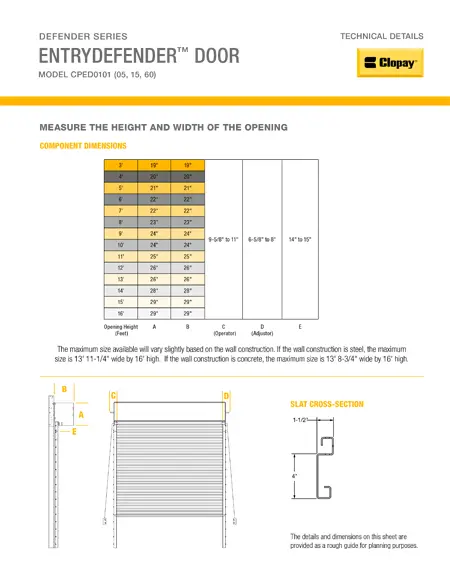

Sizes

The maximum size available will vary slightly based on the wall construction.

If the wall construction is steel, the maximum size is 13’ 11 ¼” wide by 16’ high.

If the wall construction is concrete, the maximum size is 13’ 8 ¾” wide by 16’ high.



Usage

Designed to operate 20,000 cycles (lifetime) as standard, but can also be customized to handle additional cycles if desired.

Standard Materials & Finishes

The standard materials and finishes are:

Curtain – 12 gauge 4” flat steel flat with SpectraShield® powder coat in gray.

Guides – Steel with powder coating to match the curtain.

Bottom Bar – 12 gauge 4” face steel bottom bar with powder coat to match the curtain.



Operator

Features the SG operator as standard. It is UL-325 listed with a chain and sprocket drive. It also includes an interlock to prevent operation while locks are engaged.
