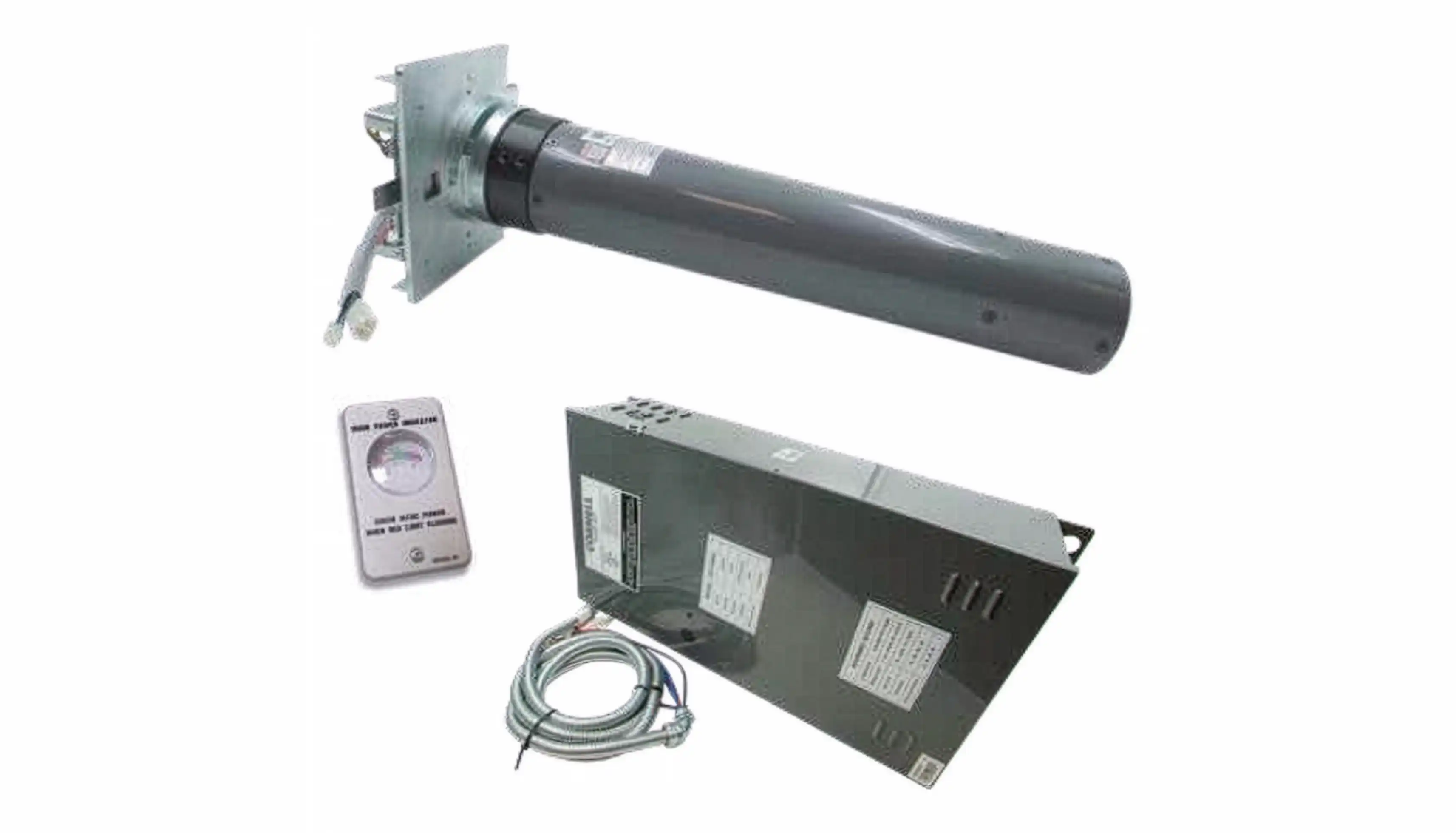

EverGard Tube Motor
The EverGard Tube Motor operator is the ideal solution for challenging installations. Its compact design is perfect for openings with tight clearances around the coil, and it neatly conceals all drive components, eliminating the need for a bulky motor cover. This operator also ensures continued door control during a power outage. It is available for our counter doors, grilles, and light gauge (22 & 24) service doors.
Enter your zip code to find your local dealer
Security Grille
CESG10, CESG11, CESG12
Counter Door
CESC10 & CESC20
Technical Specifications
Input Voltage: 120 VAC
Activation Input: 24 VDC
Phase: 1
Duty: 10 cycles/day
- Totally Enclosed Non-Ventilate (TENV) motor
- AC/DC input powers auto switching
- Auto-Recharge Battery
- Integrated battery backup allows for operation for up to 10 cycles in a 48-hour time period in the event of a power outage
- UL 325 listed
- Non-resettable cycle counter
- Programmable battery self-testing
- Remote programmable control box comes standard with 12' of cable*
- Speed governor to prevent free fall
- Programmable CONSTANT or MOMENTARY contact open and close
- Continuous monitoring sensing edge device ELR/IR connecting points
- Selectable “Auto-Open” or “Stay in Position” function if BBU reaches critically low voltage
- Selectable “Auto-Open” or “Stay in Position” function at AC power loss
- Abnormal power warning LED with selectable audible alert
- Brake - Maintenance-free, solenoid-actuated brake that is speed governed to prevent free fall
- External Battery Indicator - Backlight flashes when power is abnormal
*The control panel can be installed up to 100' away from the operator as an option, but it may require factory installation
