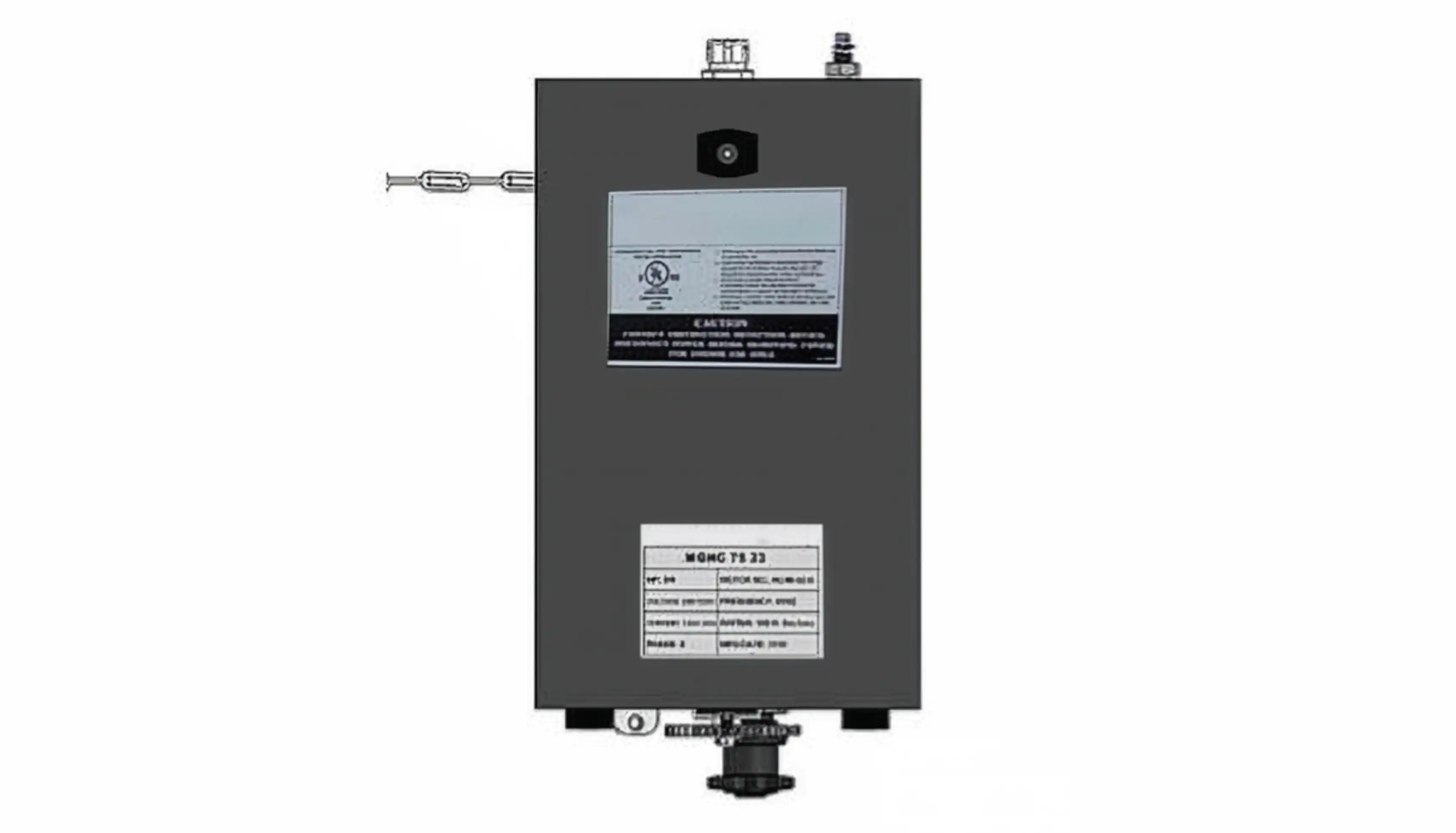

Indirect Splash-Proof MG Operator
Our Indirect Splash-Proof MG Operator comes with all of the same great features as our MG operator plus:
- Designed to meet requirements for NEMA 3R applications.
- Splash-proof for indirect contact.
Enter your zip code to find your local dealer
Designed for NEMA 3R Applications
Technical Specifications
The indirect splash-proof MG operator comes with a totally enclosed non-ventilated (TENV) motor, NEMA 4 control box and powder coated steel mounting plates.
| Model | MGHC 75 |
|---|---|
| Horsepower | 3/4 HP |
| Voltage | 115V / 230V / 460V / 575V* |
| Phase | 1/3 |
| Frequency | 60 Hz |
| Duty | 20 cycles/hr |
| Drive Chain | #50 |
| Auxiliary Hand Chain | Included |
*Additional lead time may apply. Please contact factory for details.
Module for secondary monitored entrapment protection device
- Splash-proof for indirect contact
- Gear-Head construction at the price of a belt-drive operator
- Compact operator/mounting configuration is ideal for coiling doors - operators always fit within the coil height dimension
- Consistent mounting, appearance and wiring - across full line of operator models
- Considerably lighter weight than competitive belt-drive and gear-head operator models
- Auxiliary chain for emergency operation, just pull to operate
- UL listed
- Cycle counter
- Terminal connection for a monitored entrapment protection device
- Programmable timer to close
- 24 VDC close warning output signal
- On board Open/Close/Stop buttons
- Close override if the entrapment protection device short circuits
