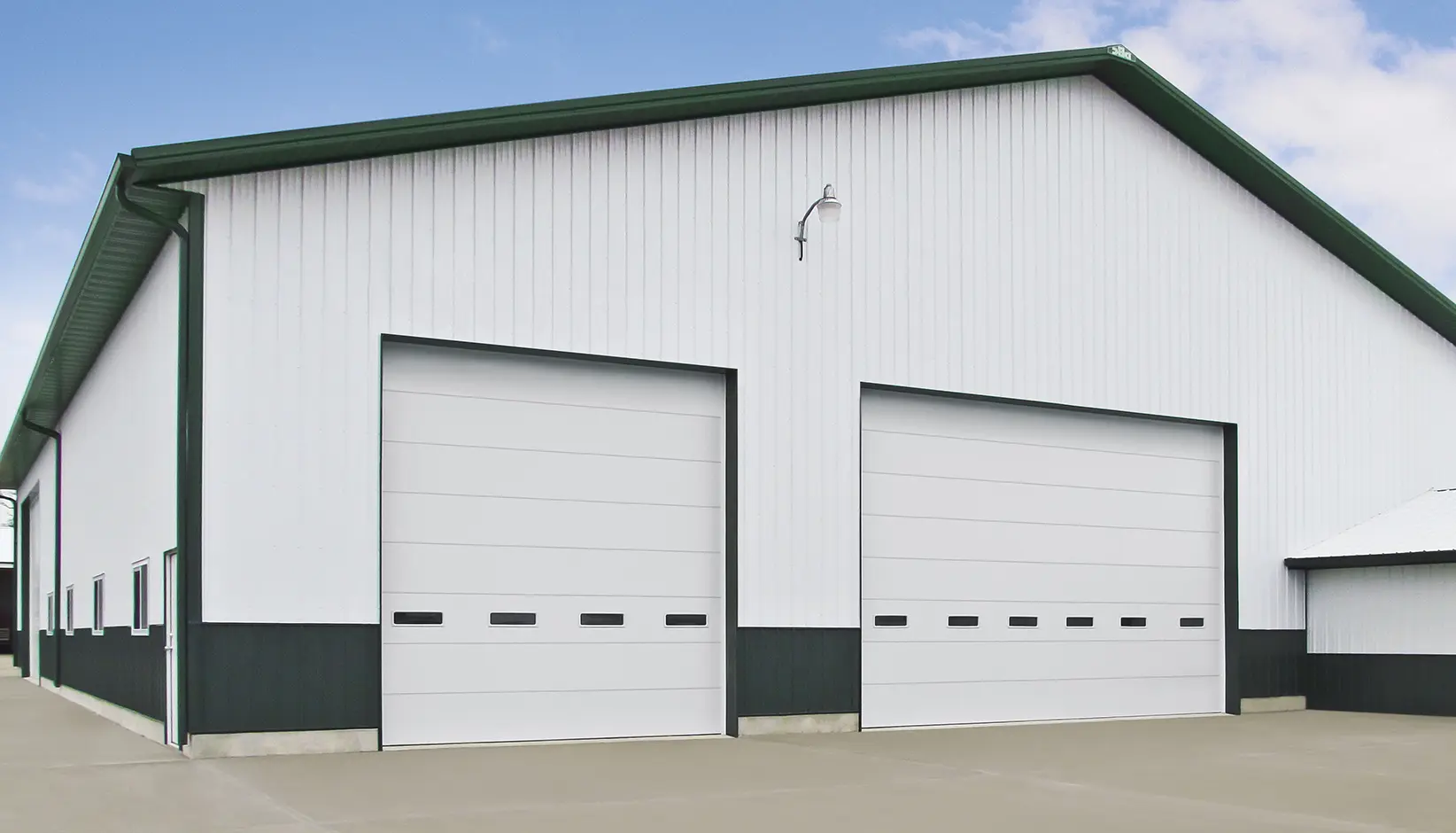

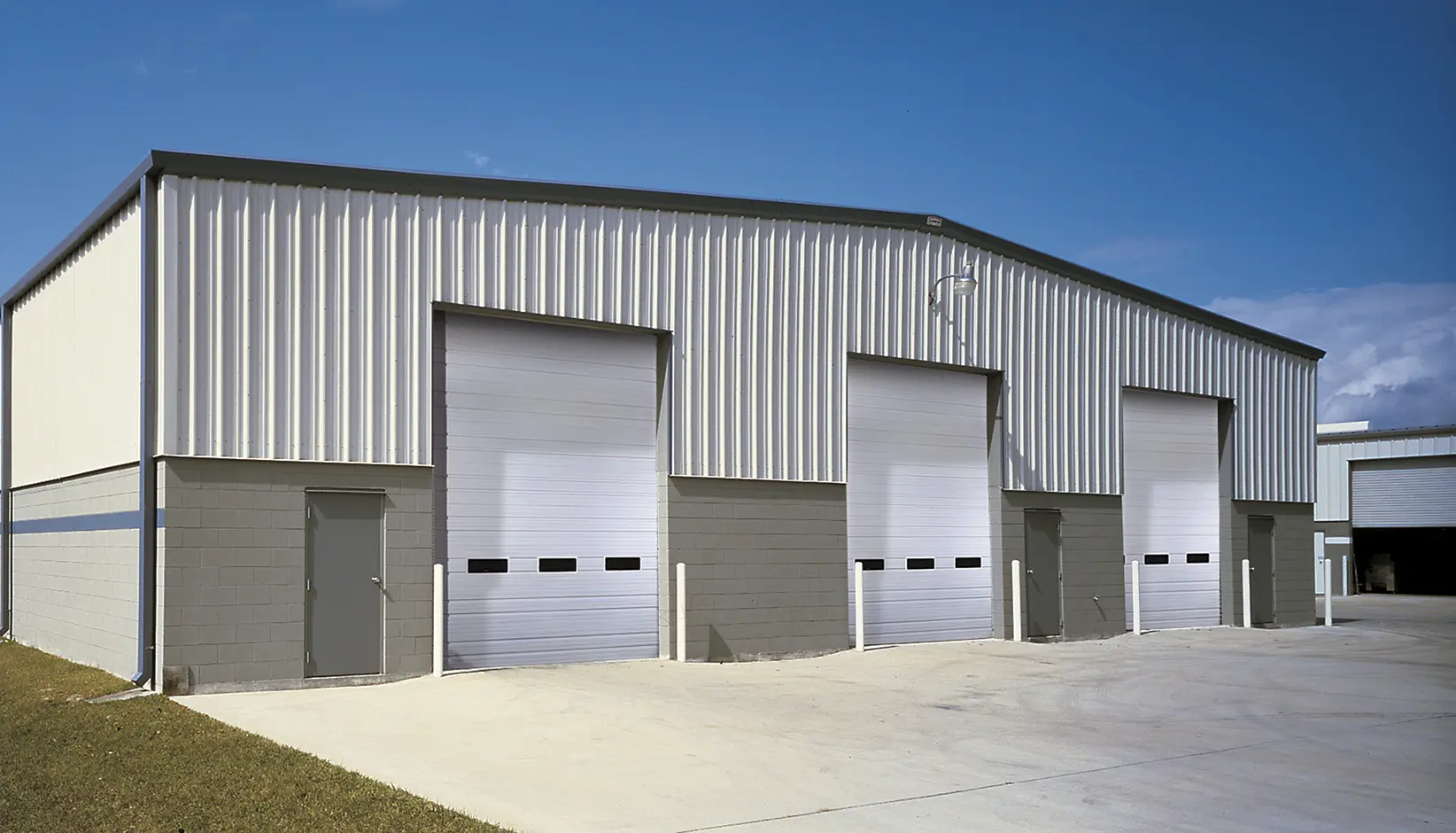

Clopay Industrial Series overhead doors provide a combination of performance and reliability for a range of industrial applications. For increased energy efficiency, polystyrene insulated insulation with a vinyl or steel backer, is available. These commercial doors offer an assortment of flush, ribbed or raised panel designs in a variety of colors, textures, windows and steel gauges. Ideal applications include warehouses, loading docks and industrial and agricultural facilities.
Industrial Series
Available with or without insulation, the Industrial Steel overhead doors combine performance and reliability for a range of industrial applications.
Enter your zip code to find your local dealer
Clopay Industrial Series overhead doors provide a combination of performance and reliability for a range of industrial applications. For increased energy efficiency, polystyrene insulated insulation with a vinyl or steel backer, is available. These commercial doors offer an assortment of flush, ribbed or raised panel designs in a variety of colors, textures, windows and steel gauges. Ideal applications include warehouses, loading docks and industrial and agricultural facilities.
*Calculated door section R-value is in accordance with DASMA TDS-163
*Tested door U-factor is in accordance with DASMA 105.
Insulated and Non-insulated doors come with a variety of options to address your building requirements. Options below are not available on all models. See model specific literature or consult a Clopay commercial dealer for option availability.
Design Options
- Windows
- 24"x6"
- 24"x12"
- Full View (pre-painted white or brown or clear anodized)
Color Options
** Available on select models.
Performance Options
- High Cycle Springs (25K, 50K and 100K available)
- 3" heavy duty track (where not standard)
- Outside keyed Security Lock
- Double End Stiles
- Design pressure rated (WindCode)
- Impact Rated
- Photo eyes, sensing edges and Operators
- Extended 8-Year Hardware Warranty
- Header (top) and Jamb Seals
- High Performance Hardware Upgrade
Custom Options
- Mullions

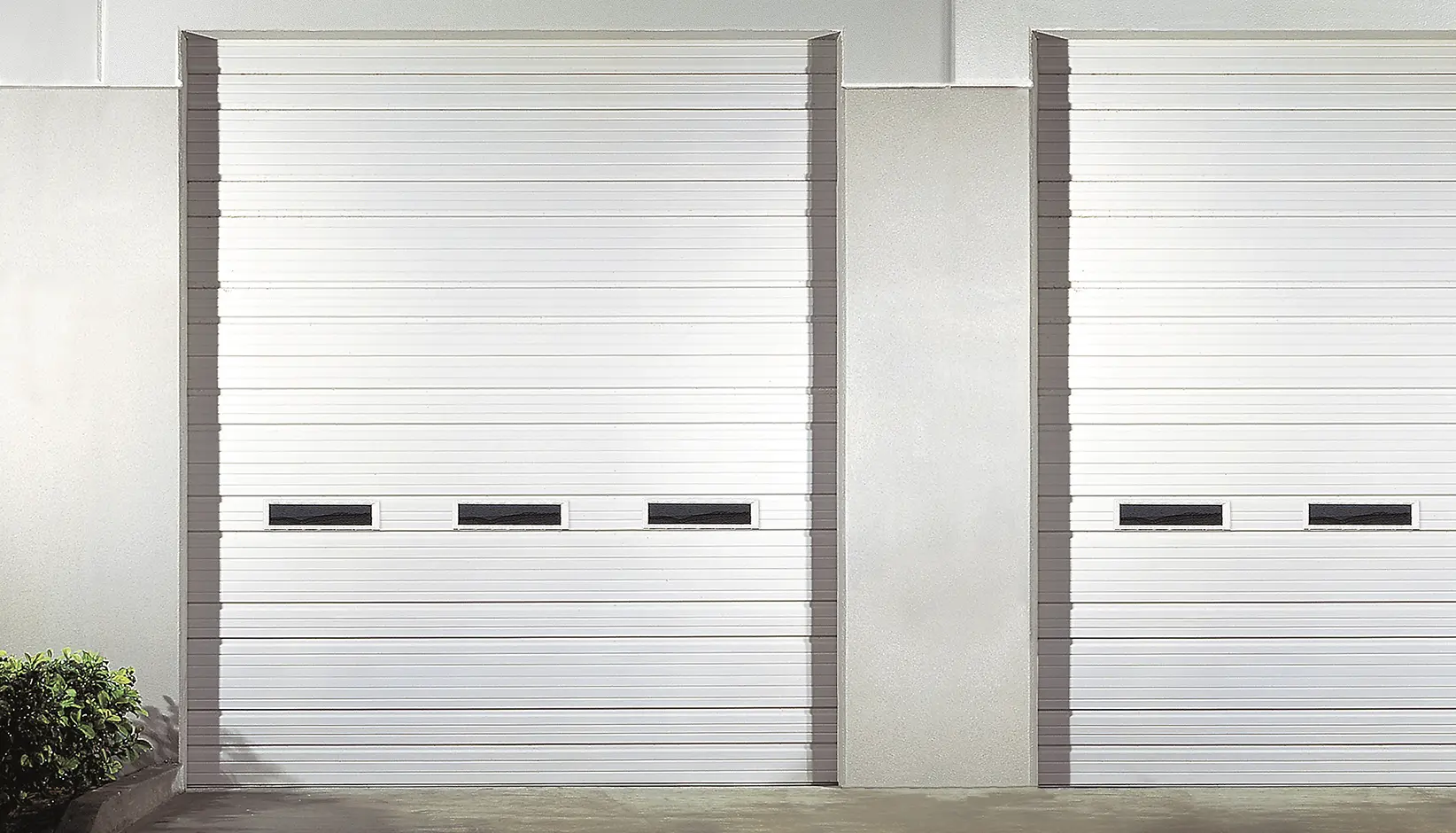

Model 520/524/525
| Panel Design: | 2" thick roll formed ribbed steel | |
| Steel Gauge: | 20 ga (.034" min) - Model 520, 24 ga (.022" min) - Model 524and 25 ga (.019 min) - Model 525 ribbed steel sections | |
| Joint Design: | Tongue and groove | |
| Thickness/Insulation: | No insulation | |
| Hardware: | 14 gauge hinges, commerical 10-ball steel rollers, 10,000 cycle torsion springs | |
| Colors: | Pre-painted white or brown (520/525) Pre-painted white, brown, tan or gray (524) | |
| Limited Warranty: | 10-year finish against rust / one-year material & workmanship |
Model 520S
| Panel Design: | 2" thick roll formed stucco embossed ribbed steel |
| Steel Gauge: | 20 gauge (.034" min) for maximum dent resistance |
| Joint Design: | Tongue and groove |
| Thickness /Insulation | 1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover |
| Thermal Conductivity | R-Value 6.6* |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors | Pre-painted white or brown |
| Limited Warranty: | 10-year paint / one-year material & workmanship |
Model 522/522S
| Panel Design: | 2" thick roll formed stucco embossed flush steel |
| Steel Gauge: | 20 gauge (.034" min) for maximum dent resistance |
| Joint Design: | Tongue and groove |
| Thickness /Insulation | 1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover |
| Thermal Conductivity | R-Value 6.6* |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors | Pre-painted white or brown |
| Limited Warranty: | 10-year paint / one-year material & workmanship |
Model 524V/524S
| Panel Design: | 2" thick roll formed stucco embossed steel |
| Steel Gauge: | 24 gauge (.022" min) ribbed steel sections |
| Joint Design: | Tongue and groove |
| Thickness /Insulation | 1-3/8" thick polystyrene insulation with polyethylene vinyl backcover (524V) 1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover (524S) |
| Thermal Conductivity | R-Value 6.6* |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors | Pre-painted white, brown, tan or gray |
| Limited Warranty: | 10-year paint /one-year material & workmanship |

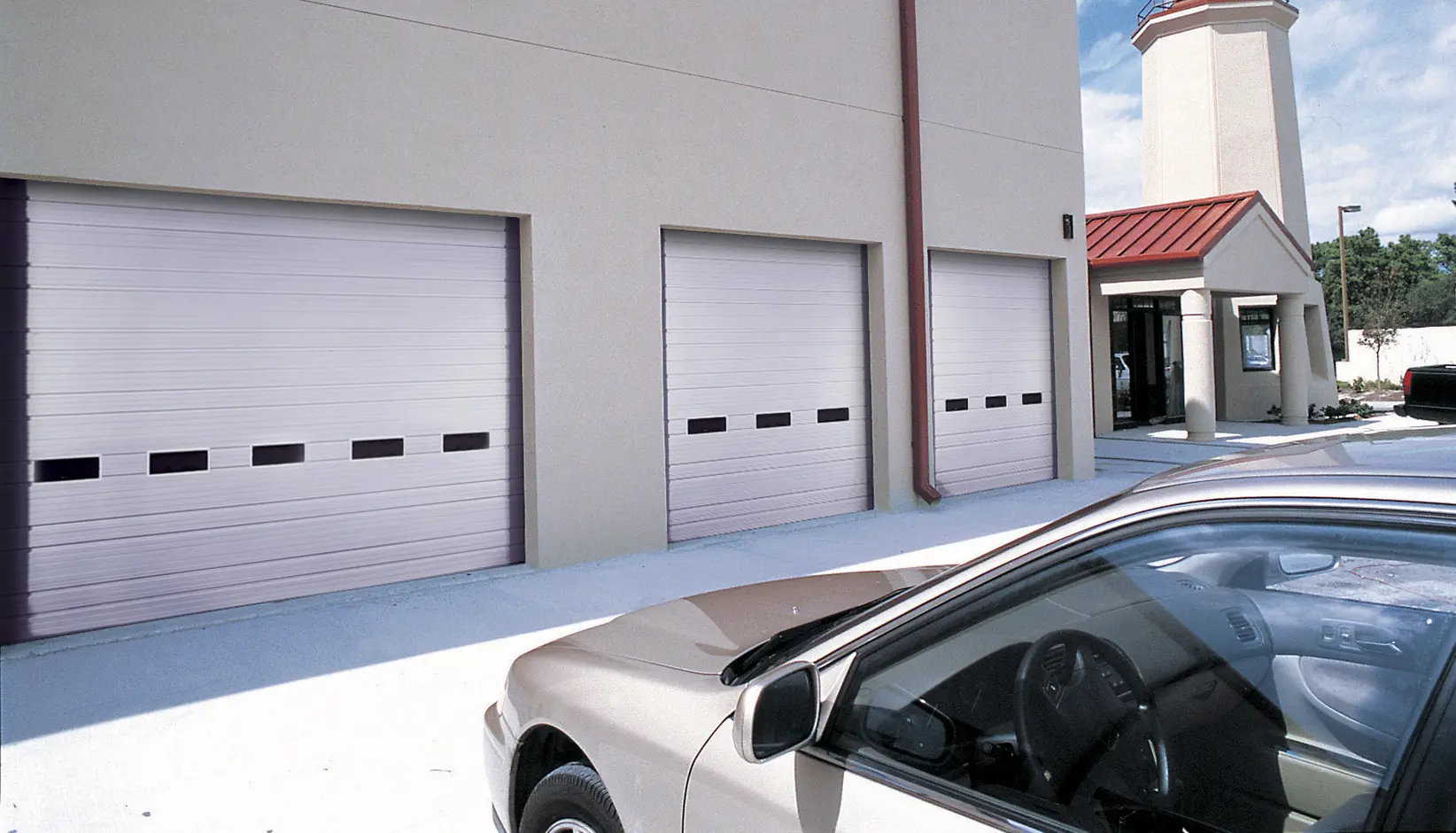

Model 525V/525S
| Panel Design: | 2" thick roll formed smooth steel with combination of deep minor ribs |
| Steel Gauge: | 25 gauge (.019" min) |
| Joint Design: | Tongue and groove |
| Thickness /Insulation | 1-3/8" thick polystyrene insulation with polyethylene vinyl backcover (525V) 1-3/8" thick polystyrene insulation with pre-painted 30 gauge steel backcover (525S) |
| Thermal Conductivity: | R-Value 6.6* |
| Paint System: | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors: | Pre-painted white or brown |
| Limited Warranty: | 10-year paint / one-year material & workmanship |

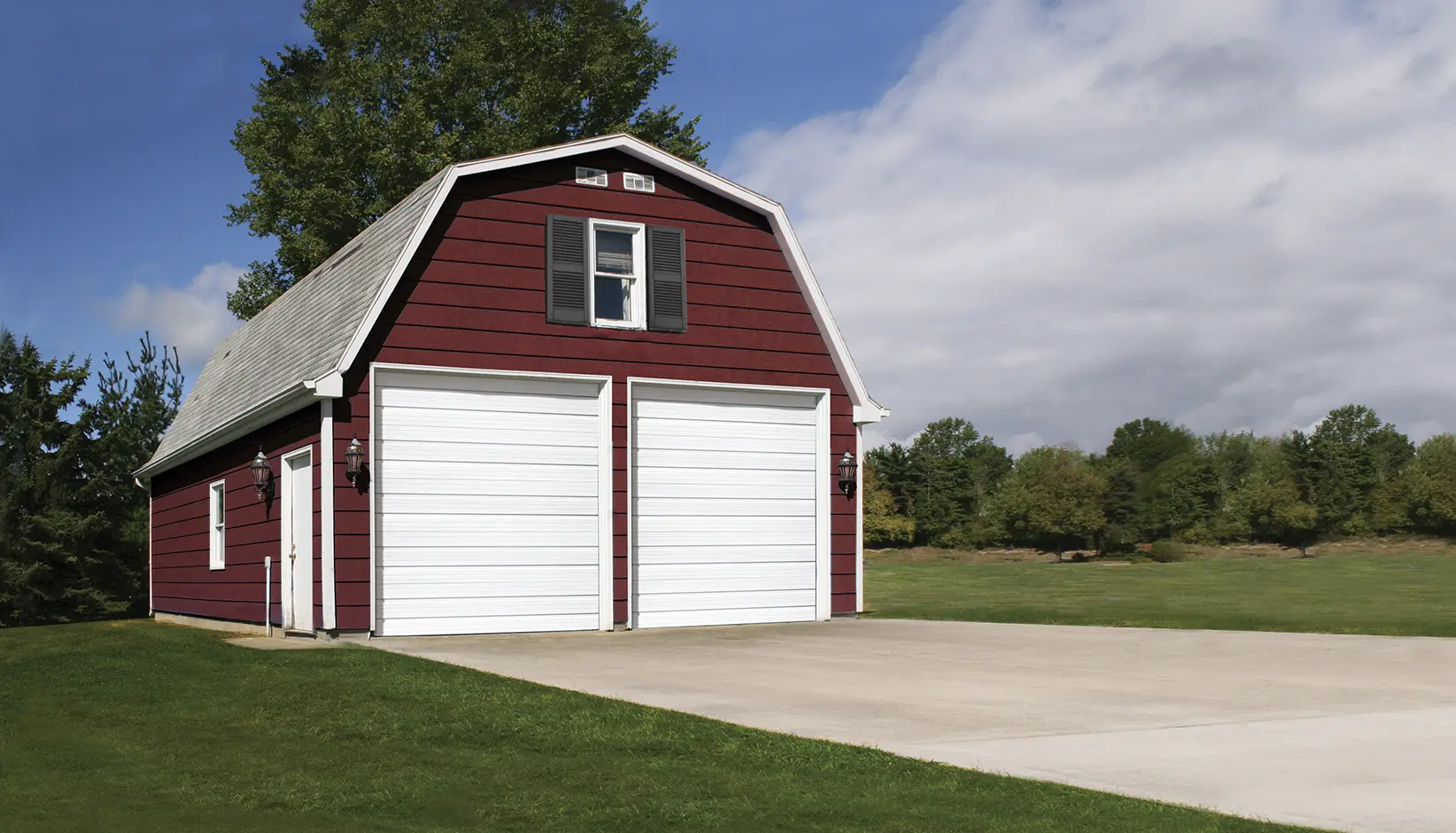

Model 664
| Panel Design: | 1 7/8" thick roll formed steel | |
| Steel Gauge: | 24 gauge (.22" min) raised panel door | |
| Joint Design: | Tongue and groove | |
| Thickness & Insulation | No insulation | |
| Hardware: | 14 gauge hinges, commerical 10-ball steel rollers, 10,000 cycle torsion springs | |
| Colors: | Pre-painted snowmist white, chocolate, brown, almond, sandstone, or desert tan. | |
| Limited Warranty: | 10-year finish against rust through / one-year material & workmanship |
Model 664V
| Panel Design: | 1-7/8" thick woodgrain embossed raised panel steel |
| Steel Gauge: | 24 gauge (.022" min) ribbed steel sections |
| Joint Design: | Tongue-and-groove |
| Thickness /Insulation | 1-3/8" thick polystyrene insulation with polyethylene vinyl backcover |
| Thermal Conductivity | R-Value 6.3* |
| Paint System | 3-stage paint process delivers maintenance free finish that resists rust perforation |
| Colors | Pre-painted white, brown, tan or gray; Trinar white or beige |
| Limited Warranty: | 10-year paint / one-year material & workmanship |
*Calculated garage door section R-value is in accordance with DASMA TDS-163.
Model
BIM
Shop Drawing
Specs
Installation Manual
Warranty
Model 520
Model 520S
Model 524
Model 524S
Model 524V
Model 525
Model 525S
Model 525V
Track/Jamb
Drawing
DXF
Brochure Commercial Idea Book
At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.
Explore Brochure
Brochure Model 520/520S
A great fit for industrial applications, models 520 and 520s deliver on durability and weather protection.
Explore Brochure
Brochure Model 524/524S
Weather-proof and durable, these doors are made with optional polystyrene insulation and an injection-molded lite frame with integral weatherseal for optimum protection.
Explore Brochure
Brochure Model 525/525S/525V
These rib-steeled doors come available in polystyrene insulated or non-insulated with our advanced Tog-L-Loc® design for rust and leak prevention.
Explore Brochure
Brochure Model 664/664V
Our contemporary-look Models 664 and 664V raised panel steel doors are available in both insulated and non-insulated options.
Explore Brochure
Extended 8-Year Hardware Warranty
Facilities rely on their openings to get work done. That’s why we offer an Extended 8-Year Warranty for demanding applications.
Explore Brochure
Brochure 522/522S
Our flush-steel doors are available with our environmentally safe insulation with a 30 gauge prepainted steel back cover.
Explore BrochureCommercial Hardware
Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.
- 14 gauge hinges
- Commercial 10 ball steel rollers with options for nylon tire rollers
- 10,000 cycle torsion springs
- Steel step plate and lift handle for easy operation
- Inside slide lock for increase security
- 19 gauge steel hinge support plates
- 18-gauge single end stiles; 16-gauge double end stiles
- Galvanized aircraft cables with 7:1 safety factory
- 2” or 3” track in a variety of configurations to meet building design requirements
Commercial Track Applications
In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options. Learn more.
Commercial Torsion Springs
Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. Click here for details
