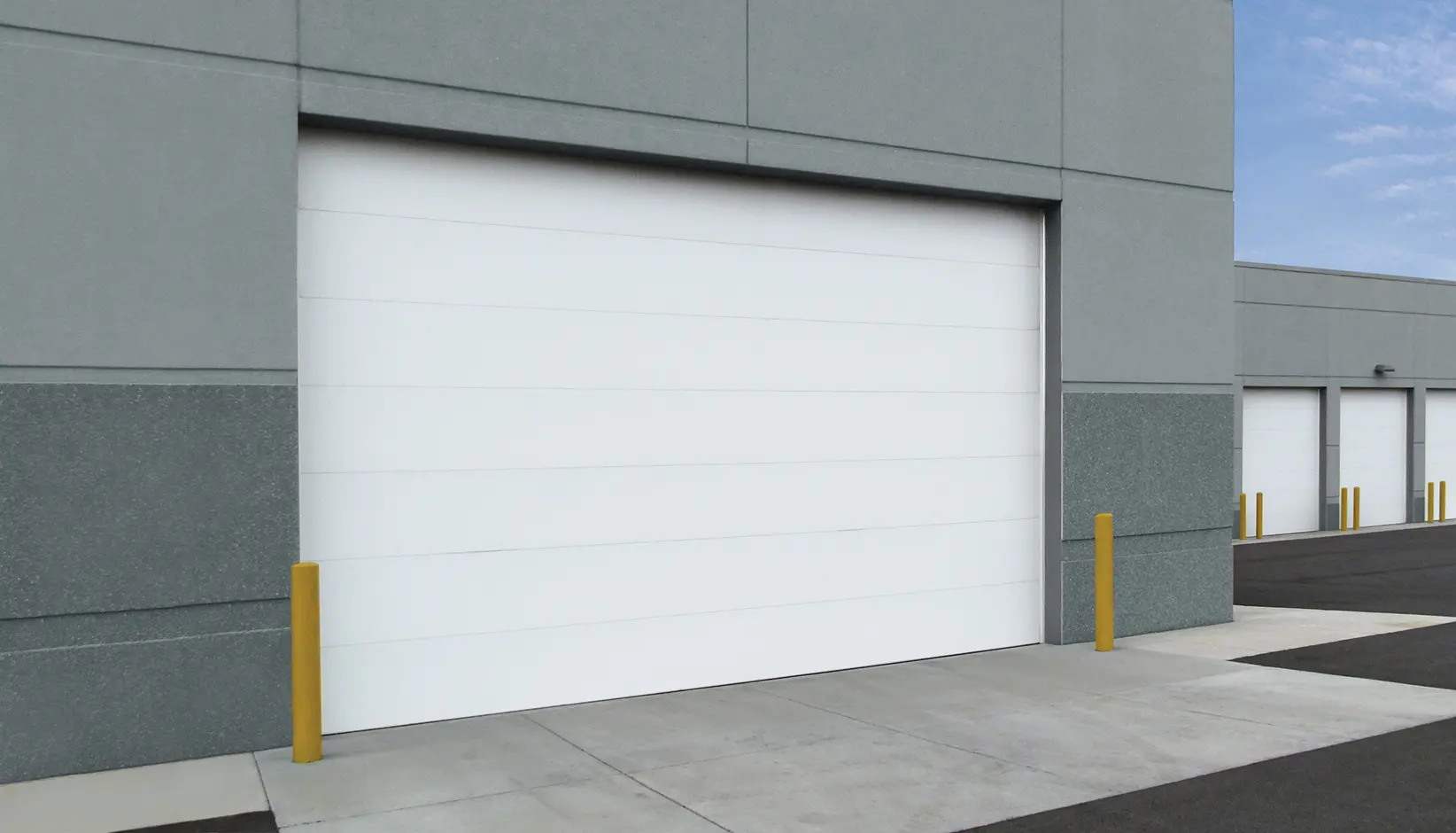

Clopay Energy Series overhead sectional doors provide durability, energy efficiency and multiple performance and design options. They feature polystyrene insulation which helps reduce heating and cooling costs with years of reliable service. These commercial doors offer stucco or woodgrain embossed steel exterior skins with flush, minor ribbed, or raised panel section designs. Ideal applications include warehouses, loading docks and industrial and agricultural facilities.

Energy Series

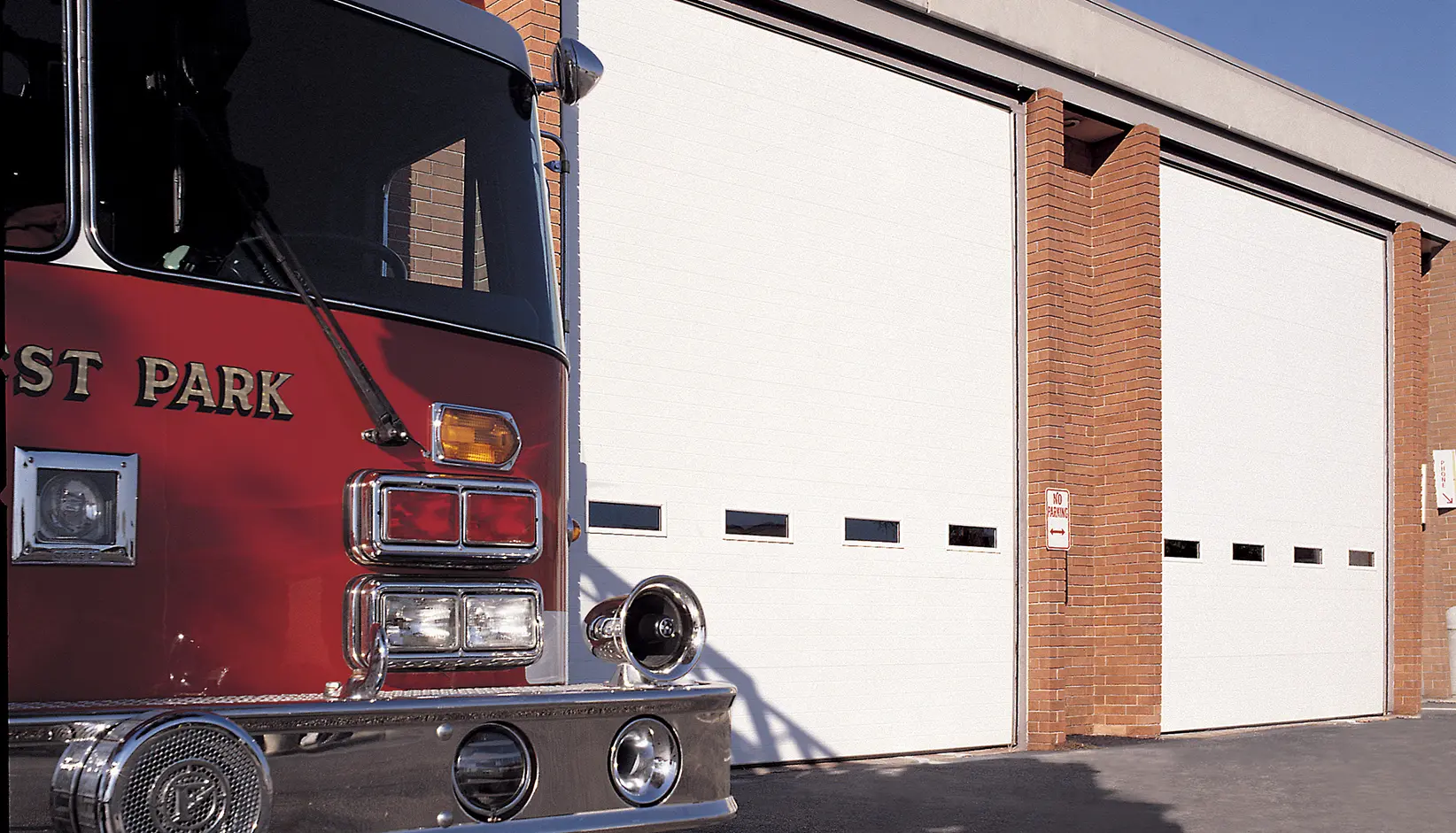

Our Energy Series doors help reduce heating and cooling costs. This door is ideal for warehouses, loading docks, industrial and agricultural facilities.

Enter your zip code to find your local dealer

Clopay Energy Series overhead sectional doors provide durability, energy efficiency and multiple performance and design options. They feature polystyrene insulation which helps reduce heating and cooling costs with years of reliable service. These commercial doors offer stucco or woodgrain embossed steel exterior skins with flush, minor ribbed, or raised panel section designs. Ideal applications include warehouses, loading docks and industrial and agricultural facilities.

ModelSection ThicknessEmbossExt. Steel PatternExt. Steel GaugeR-Value*U-Factor*Thermal BreakMax Width✭Max Height✭
32202"StuccoFlush20 Gauge9.10.24Thermally broken26'2"20'0"
32132"WoodgrainRaised panel24 Gauge9.10.24Thermally broken24'2"18'0"
32112"WoodgrainFlush24 Gauge9.10.24Thermally broken24'2"18'0"
32002"StuccoMinor ribbed24 Gauge9.10.24Thermally broken26'2"20'0"
31551-3/8"WoodgrainFlush panel27 Gauge6.50.3Thermally broken16'0"16'0"
31541-3/8"WoodgrainRaised Panel27 Gauge6.50.3Thermally broken16'0"16'0"
31501-3/8"StuccoMinor ribbed27 Gauge6.50.3Thermally broken16'0"16'0"

*Calculated door section R-value is in accordance with DASMA TDS-163

*Tested door U-factor is in accordance with DASMA 105.

Glass Panel Options
Commercial Panel
24" X 8" (3150, 3200, 3220)
Commercial Panel
24" X 12" (3150, 3200, 3220)
Commercial Panel
Full-View* (3150, 3200, 3220)
Commercial Panel
19-1/2" x 12" (3154, 3155, 3211, 3213)

*Aluminum Intellicore polyurethane full-view section available

Note: Windows available in insulated or insulated tempered glass.

Glazing Material Options
Clear Glass Glazing Material Clopay Garage Doors
Clear Glass
Commercial-Gray-Tinted-Glass
Gray Tinted Glass
Bronze Tinted Clopay Garage Door Glazing Material
Bronze Tinted Glass
Mirrored Glass Glazing Material Clopay Garage Doors
Mirrored Glass*
Obscure Glass Glazing Material Clopay Garage Doors
Obscure Glass
White Laminate Glass Glazing Material Clopay Garage Doors
White Laminate Glass*
Frosted Glass or Acrylic Glazing Material Clopay Garage Doors
Frosted Glass Or Acrylic
Clear Acrylic Clopay Garage Door Glazing Material
Clear Acrylic
Gray Acrylic Glazing Material Clopay Garage Doors
Gray Acrylic
White Acrylic Glazing Material Clopay Garage Doors
White Acrylic
Clear Polycarbonate Glazing Material Clopay Garage Doors
Clear Polycarbonate
Bronze Polycarbonate Clopay Garage Door Glazing Material
Bronze Polycarbonate
Aluminum Panel Color Match Clopay Glazing Material Garage Door Option
Aluminum Panel (Color Matched)

*Mirrored and laminate not available in 1/2"

Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 1/2". Low-E available on insulated glass.

Color Options
Avante-White-Painted
Standard White
Chocolate-Painted
Chocolate
Paint-Color-Almond
Almond*
Paint-Color-DesertTan
Desert Tan*
Paint-Color-Sandtone
Sandtone*
Paint-Color-Mocha-Brown
Mocha Brown*
Paint-Color-Charcoal
Charcoal*
Paint-Color-Bronze-Terratone
Bronze*
Paint-Color-Black
Black*
Paint-Color-Commercial-Tanjpg
Commercial Tan*
Paint-Color-Gray
Gray*
Paint-Color-Trinar-White
Trinar® White*
Paint-Color-Trinar-Beige
Trinar® Beige*
Request Color Samples

*Available on select models.

Performance Options Available
Commercial Options
Double-end hinge
Commercial Options
3" track
High Performance
High performance hardware features 10 gauge end hinges, heavy-duty top bracket and 3" sealed roller with 5/8" stem
Commercial Options
Exhaust port can be cut into any type of solid sectional door. Available in select sizes.
WindCode
WindCode® reinforcement available up to W8 design pressure (DP) 52 PSF, depending on door configuration. Doors tested 50% greater than DP.
Extended Warranty
Upgrade your standard door with industrial-grade components.
Commercial Options
25,000, 50,000 or 100,000 cycle springs available.

Model

BIM

Shop Drawing

Specs

Installation Manual

Warranty

Model 3150

BIM

-

Shop Drawing

Download

Installation Manual

PDF

Warranty

PDF

Model 3154

BIM

-

Installation Manual

PDF

Warranty

PDF

Model 3200

BIM

-

Installation Manual

PDF

Warranty

PDF

Model 3213

BIM

-

Installation Manual

PDF

Warranty

PDF

Model 3220

Installation Manual

PDF

Warranty

PDF

Track/Jamb

Drawing

DXF

PDF

Standard Track

DWG

DWG

DXF

DXF

PDF

-

Standard Track Follow the Roof Track

DWG

DWG

DXF

DXF

PDF

PDF

Low Headroom–Rear Mount Track

DWG

DWG

DXF

DXF

PDF

PDF

Low Headroom–Front Mount Track

DWG

DWG

DXF

DXF

PDF

PDF

Vertical Track

DWG

DWG

DXF

DXF

PDF

PDF

High Lift Track

DWG

DWG

DXF

DXF

PDF

PDF

High Lift Follow-the-Roof Track

DWG

DWG

DXF

DXF

PDF

PDF

Jamb Details

DWG

DWG

DXF

DXF

PDF

-

Model 3154 & 3155 Brochure

Model 3154 & 3155 Brochure

Clopay Insulated steel sectional doors come in contemporary or traditional styles with a charming woodgrain embossed texture.

Explore Brochure
Model 3150 Brochure

Model 3150 Brochure

The Model 3150 is an energy-efficient door system with an R-Value of 6.5 and a 27-gauge exterior steel skin, making it both durable and energy-efficient.

Explore Brochure
Model 3200-3211-3213 Brochure

Model 3200-3211-3213 Brochure

Our Energy Series Models 3200, 3211, and 3233 doors come with bonded polystyrene insulation and are designed with a 24-gauge steel skin and R-Value 9.1 for energy efficiency and comfort.

Explore Brochure
Brochure Model 3220

Brochure Model 3220

Energy Series Model 3220 doors are rugged, energy-efficient doors designed for commercial and industrial facilities.

Explore Brochure
Extended 8-Year Hardware Warranty

Extended 8-Year Hardware Warranty

Facilities rely on their openings to get work done. That’s why we offer an Extended 8-Year Warranty for demanding applications.

Explore Brochure

Commercial Hardware

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

  • 14 gauge hinges
  • Commercial 10 ball steel rollers with options for nylon tire rollers
  • 10,000 cycle torsion springs
  • Steel step plate and lift handle for easy operation
  • Inside slide lock for increase security
  • 19 gauge steel hinge support plates
  • 18-gauge single end stiles; 16-gauge double end stiles
  • Galvanized aircraft cables with 7:1 safety factory
  • 2” or 3” track in a variety of configurations to meet building design requirements

Commercial Track Options

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.  Learn more>

Commercial Torsion Springs

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. Click here for details.
