Clopay’s Intellicore overhead doors meet the needs of commercial buildings that require exceptional climate control. They feature polyurethane insulation which helps keep the building’s interior cooler in summer and warmer in winter. Our energy-efficient commercial doors include stucco or woodgrain embossed steel exteriors with flush, minor ribbed, or raised panel section designs. Ideal applications include warehouses, manufacturing plants, municipal buildings and retail stores.

Energy Series with Intellicore®

When energy efficiency and durability are required, choose Energy Series with Intellicore® for commercial and industrial facilities.

Enter your zip code to find your local dealer

Clopay’s Intellicore overhead doors meet the needs of commercial buildings that require exceptional climate control. They feature polyurethane insulation which helps keep the building’s interior cooler in summer and warmer in winter. Our energy-efficient commercial doors include stucco or woodgrain embossed steel exteriors with flush, minor ribbed, or raised panel section designs. Ideal applications include warehouses, manufacturing plants, municipal buildings and retail stores.

ModelThicknessEmbossExterior SteelPatternR-Value*U-Factor*Std Max Width**Std Max Height
37303"Stucco27 GaugeMinor Ribbed27.20.1630'2"20'0"
37242"Stucco24 GaugeMinor Ribbed18.40.1936'2"20'0"
37232"Woodgrain27 GaugeRaised Panel18.40.1924'2"18'0"
37222"Stucco20 GaugeFlush18.40.1932'2"20'0"
37212"Woodgrain27 GaugeFlush18.40.1924'2"18'0"
37202"Stucco27 GaugeMinor Ribbed18.40.1940'2"20'0"
37171 3/4"Stucco27 GaugeMinor Ribbed16.20.2124'2"20'0"
37181 3/4"Stucco27 GaugeFlush16.20.2124'2"20'0"
37151 3/8"Stucco27 GaugeMinor Ribbed12.90.2118'2"16'0"

Intellicore-IconClopay's proprietary polyurethane Intellicore® insulation
*Calculated door section R-value is in accordance with DASMA TDS-163
*Tested door U-factor is in accordance with DASMA 105.
**For sizes over 32'2" wide consult factory for specific configuration requirements.

Glass Panel Options
Commercial Panel
24" X 8" (3715, 3717, 3718, 3720, 3724, 3730)
Commercial Panel
24" X 12" (3715, 3717, 3718, 3720, 3724, 3730)
Commercial Panel
Full-View* (3715, 3717, 3718, 3720, 3722, 3724)
Commercial Panel
19-1/2" x 12" (3721, 3723)

*Intellicore® polyurethane insulated full-view sections available in models 3720, 3722 and 3724.

Glazing Material Options

Clear Glass Glazing Material Clopay Garage Doors
Clear Glass
Commercial-Gray-Tinted-Glass
Gray Tinted Glass
Bronze Tinted Clopay Garage Door Glazing Material
Bronze Tinted Glass
Mirrored Glass Glazing Material Clopay Garage Doors
Mirrored Glass*
Obscure Glass Glazing Material Clopay Garage Doors
Obscure Glass
White Laminate Glass Glazing Material Clopay Garage Doors
White Laminate Glass*
Frosted Glass or Acrylic Glazing Material Clopay Garage Doors
Frosted Glass Or Acrylic
Clear Acrylic Clopay Garage Door Glazing Material
Clear Acrylic
Gray Acrylic Glazing Material Clopay Garage Doors
Gray Acrylic
White Acrylic Glazing Material Clopay Garage Doors
White Acrylic
Clear Polycarbonate Glazing Material Clopay Garage Doors
Clear Polycarbonate
Bronze Polycarbonate Clopay Garage Door Glazing Material
Bronze Polycarbonate
Aluminum Panel Color Match Clopay Glazing Material Garage Door Option
Aluminum Panel (Color Matched)

*Mirrored and laminate not available in 1/2"

Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 1/2". Low-E available on insulated glass.

Color Options
Avante-White-Painted
Standard White
Chocolate-Painted
Chocolate
Paint-Color-Almond
Almond
Paint-Color-DesertTan
Desert Tan
Paint-Color-Sandtone
Sandtone
Paint-Color-Mocha-Brown
Mocha Brown*
Paint-Color-Charcoal
Charcoal
Paint-Color-Bronze-Terratone
Bronze
Paint-Color-Black
Black
Paint-Color-Gray
Gray
Paint-Color-Trinar-White
Trinar® White
Paint-Color-Trinar-Beige
Trinar® Beige
Paint-Color-Commercial-Tanjpg
Commercial Tan
Request Color Samples

Premium finishing options include:

  • Custom Colors with Color Blast ® Garage Door Paint System
  • Bronze, dark bronze, black or custom color anodized finishing available on full-view sections only
Performance Options Available
Commercial Options
Double-end hinge
Commercial Options
3" track
High Performance
High performance hardware features 10 gauge end hinges, heavy-duty top bracket and 3" sealed roller with 5/8" stem
Commercial Options
Exhaust port can be cut into any type of solid sectional door. Available in select sizes.
WindCode
WindCode® reinforcement available up to W8 design pressure (DP) 52 PSF, depending on door configuration. Doors tested 50% greater than DP.
Extended Warranty
Upgrade your standard door with industrial-grade components.
Commercial Options
25,000, 50,000 or 100,000 cycle springs available.
Speciality Options Available
Mullions
Mullions
Carry-away, roll-away or swing-up mullions are available on select sizes.
Break-Away Section
Break-Away Section
Single section and double sections available on select sizes.
Pass Door
Pass Door
32" wide x 80" high, max 16'2" wide section. Available in 2" thick doors only.
Safe-T-Stop
ControlGard® SD Chain Hoist
The ControlGard® Chain Hoist features an integral braking system that only allows it to move when the user is actively pulling the chain, reducing the risk of expensive door damage and increasing the safety of users and those nearby.

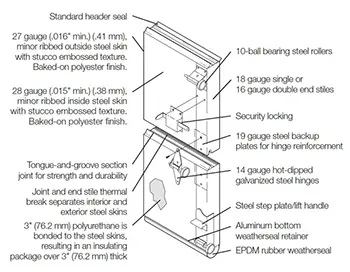

Model 3730
Model 3730 Features
Panel Design:

3" thick stucco embossed ribbed steel exterior

Steel Gauge:27 gauge (.016" min) exterior; 28 gauge (.016" min) interior
Joint Design:Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
Thermal Conductivity:R-value 27.2* for maximum energy efficiency
Paint System:3-stage paint process delivers maintenance free finish that resists rust prevention
Colors:Snow mist white, commercial brown, ColorblastTM
Limited Warranty:10-year paint / 10-year delamination / one-year material & workmanship

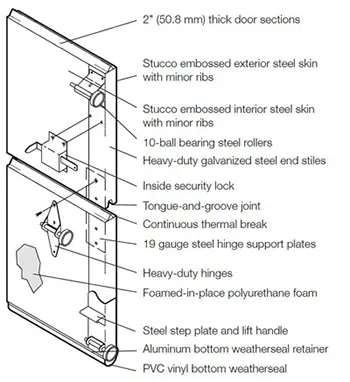

Model 3720 / 3724 / 3722
Features Models 3720-3724-3722
Panel Design:

(3720 & 3724) 2" thick stucco embossed steel exterior with minor ribbed pattern

(3722) 2" thick stucco embossed flush steel exterior

Steel Gauge:(3720) 27 gauge (.016" min) exterior; 28 gauge (.016" min) interior
(3724) 24 gauge (.022" min) exterior; 28 gauge (.016" min) interior
(3722) 20 gauge (.034" min) exterior; 28 gauge (.016" min) interior
Joint Design:Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
Thermal Conductivity:R-value 18.4* for maximum energy efficiency
Paint System:3-stage paint process delivers maintenance free finish that resists rust perforation
Colors:(3720) Standard white, glacier white, commercial tan, chocolate, mocha brown, gray, Trinar white, Trinar beige, charcoal and Color Blast™
(3724) Standard white, commercial tan, chocolate, black, gray, Trinar white and Colorblast
(3722) Standard white, chocolate and Colorblast
Limited Warranty:10-year paint / 10-year delamination / one-year material & workmanship

MODEL 3717 / 3718
Model 3717-3718
Panel Design:

(3717) 1 3/4" thick stucco embossed steel exterior with minor ribbed pattern

(3718) 1 3/4" thick stucco embossed flush steel exterior

Steel Gauge:27 gauge (.016" min) exterior; 28 gauge (.016" min) interior
Joint Design:Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
Thermal Conductivity:R-value 16.2* for maximum energy efficiency
Paint System:3-stage paint process delivers maintenance free finish that resists rust perforation
Colors:Pre-painted snow mist white, commercial brown, tan or gray. Optional Trinar white.
Limited Warranty:10-year paint / 10-year delamination / one-year material & workmanship

MODEL 3715
Model 3715
Panel Design:1 3/8" thick stucco embossed steel with minor ribbing
Steel Gauge:27 gauge (.016" min) exterior; 28 gauge (.016" min) interior
Joint Design:Tongue & groove section with continuous foam thermal break prevents cold or heat from passing through the section
Thermal Conductivity:R-value 12.9* for maximum energy efficiency
Paint System:3-stage paint process delivers maintenance free finish that resists rust perforation
Colors:Pre-painted snow mist white or commercial brown, tan and gray
Limited Warranty:10-year paint / 10-year delamination / one-year material & workmanship

*Calculated door section R-value is in accordance with DASMA TDS-163.

Model

BIM

Shop Drawing

Specs

Installation Manual

Warranty

Model 3715

Installation Manual

PDF

Warranty

PDF

Model 3717

Installation Manual

PDF

Warranty

PDF

Model 3718

Installation Manual

PDF

Warranty

PDF

Model 3720

Installation Manual

PDF

Warranty

PDF

Model 3722

Installation Manual

PDF

Warranty

PDF

Model 3724

Installation Manual

PDF

Warranty

PDF

Model 3730

Track/Jamb

Drawing

DXF

PDF

Standard Track

DWG

DWG

DXF

DXF

PDF

PDF

Standard Track Follow the Roof Track

DWG

DWG

DXF

DXF

PDF

PDF

Low Headroom–Rear Mount Track

DWG

DWG

DXF

DXF

PDF

PDF

Low Headroom–Front Mount Track

DWG

DWG

DXF

DXF

PDF

PDF

Vertical Track

DWG

DWG

DXF

DXF

PDF

PDF

High Lift Follow-the-Roof Track

DWG

DWG

DXF

DXF

PDF

PDF

High Lift Track

DWG

DWG

DXF

DXF

PDF

PDF

Jamb Details

DWG

DWG

DXF

DXF

PDF

-

Brochure Model 3715

Brochure Model 3715

Foamed in place Intellicore® polyurethane insulation provides strength, energy efficiency, and an R-value of 12.9.

Explore Brochure
Brochure Model 3717-3718

Brochure Model 3717-3718

With an R-Value of 16.2, Models 3717 and 3718 are outfitted with our innovative Intellicore® polyurethane insulation to maximize energy efficiency.

Explore Brochure
Brochure Model 3720-3721-3723

Brochure Model 3720-3721-3723

These polyurethane insulated steel doors are durable, energy-efficient, and customizable with an R-Value of 18.4.

Explore Brochure
Brochure Model 3722

Brochure Model 3722

Model 3722 Polyurethane Insulated flush steel doors are designed for commercial and industrial facilities where demanding conditions require a rugged, energy-efficient door.

Explore Brochure
Brochure Model 3724

Brochure Model 3724

Our Model 3724 is a durable, versatile, and easy-to-maintain door for commercial and industrial use.

Explore Brochure
Brochure Model 3730

Brochure Model 3730

Clopay Model 3730 is for commercial and industrial facilities where ease of maintenance, versatility, durability and high R-value are important.

Explore Brochure
Brochure Commercial Idea Book

Brochure Commercial Idea Book

At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.

Explore Brochure

Commmercial Hardware

Commercial doors are designed with hardware to meet demanding applications of commercial building usage. All commercial doors are provided with the following hardware as standard. For additional upgraded hardware see “Options” tab.

  • 14 gauge hinges
  • Commercial 10 ball steel rollers with options for nylon tire rollers
  • 10,000 cycle torsion springs
  • Steel step plate and lift handle for easy operation
  • Inside slide lock for increase security
  • 19 gauge steel hinge support plates
  • 18-gauge single end stiles; 16-gauge double end stiles
  • Galvanized aircraft cables with 7:1 safety factory
  • 2” or 3” track in a variety of configurations to meet building design requirements

Commercial Track Applications

In commercial settings, space utilization and space constraints are important factors in choosing the correct hardware configuration for your application. Clopay track offerings and options enable you to make the most efficient use of available space. Options include standard lift, low head room front or rear mount, follow the roof pitch, full vertical or combination of these options.  Learn more

Commercial Torsion Springs

Designed to counterbalance even the largest doors, commercial torsion spring assemblies can be designed for Industry standard 10,000 cycles or can be upgraded to 25,000, 50,000 or 100,000 expected life cycles. Click here for details
