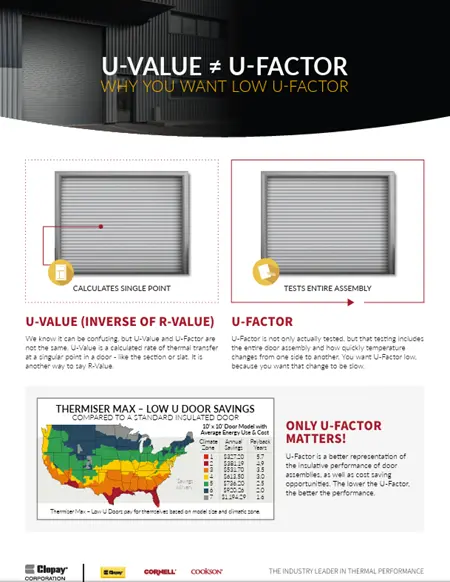

Setting a new standard, the Thermiser Max® - Low U Insulated Door boasts the lowest U-factor rating among steel rolling doors. After rigorous third-party testing, the Thermiser Max - Low U door received a *U-factor rating of 0.532 for the full assembly. What’s more, the door is thoughtfully engineered with high-quality mineral wool insulation and a CPVC backer, an insulated curtain, patented perimeter seal, and a thermally-broken guide, offering both climate and noise control. The Thermiser Max - Low U door is a reliable choice to regulate temperatures in some of the most demanding environments, including food and pharmaceutical plants. *Options such as windows, pass doors, etc. may impact U-factor. Contact the factory for details on specific configurations.

Thermiser Max® - Low U Insulated Door

Setting a new standard, the Thermiser Max® - Low U Insulated Door boasts the lowest U-factor rating among steel rolling doors.

Request A Quote Get Architectural Support

Enter your zip code to find your local dealer

Zip Code

CESD40

Aesthetics

Omni Powder Coat – Allows you to match your rolling steel doors with select sectional doors to create a unified look. Available in:

Commercial Tan
Commercial Gray
Charcoal
Standard White
Chocolate Brown
Black

AtmoShield™ Powder Coating – It is a textured finish that combats the environments harsh wear and tear. This finish provides a thicker, more scratch resistant coat for added protection.

Chain Diverter for MGH Operator – Holds the auxiliary chain out of the opening, enabling unhindered movement through the door and eliminating the need for a chain bag.

Hood and Operator Covers – Metal cover designed to shield the coil or operator from outdoor elements, debris, or to comply with OSHA or UL 325 safety standards.

SpectraShield™ Powder Coating – It is a Polyester finish in more than 180 colors offering durability, aesthetics, superior finish life and cost effectiveness.

Trim Package – Used to cover unsightly hardware.

Vinyl Graphics –Enhance your curtains and hoods with lasting, full-color imagery. A must for school logos and smart way to turn your door into a lucrative sponsorship opportunity in stadiums, amusement parks and retail spaces.

Vision Windows–One- or two-way windows can be added to the curtain to boost the look and visibility of your door.

Performance Upgrades

LED Light Kit – Provides a high-visible status indication for rolling doors and grilles.

Magic Switch – A touchless activation system designed to operate doors and grilles with the wave of a hand. It is compatible with all operators that have a primary entrapment device and are configured for momentary contact to close. High Cycle Construction – Upgrade to a special higher-cycle construction for up to 100,000 cycles.

High Cycle Springs – Durable, robust springs engineered to endure 100,000 cycles.

Seismic Performance Validation – Project specific seismic calculations are available for all rolling doors that are mounted face of wall to steel or masonry. Seismic performance validation is per ASCE 7-05.

Vibration Isolators – Reduces the amount of vibration caused by operation of doors and grilles.

SmartSync Wireless Remote Control – The anti-shock design of this remote is designed for industrial handling. Compatible with most motor – operated doors, grilles or counter doors.

Safety & Protection

Sensing Edge - Designed with a flexible black rubber TPE material, our sensing edge has two fins that form to variations in the floor on both the interior and exterior of your door or grille. This ensures a secure seal without requiring you to over set the bottom door limit.

SmartSync Wireless Safety Edge – This is used to upgrade the existing sensing edge to wireless communication between the transmitter and the receiver. This eliminates the coiling cord in the door opening.

SafetyGard UL325 Approved Light Curtain – Prevents damage to an object in the door’s opening and minimizing damage to the closure itself.

Entrapment Protection Device – Ensures that a motorized door or grille will not close on an object. If an object enters the opening, the entrapment protection device will stop the door or grille from closing and return to the fully open position.

Guide-Mounted Interlocks – An electrical cutout switch to prevent motor operation if the locking device is not first disengaged.

HDBB (Heavy Duty Bottom Bar) – Since it’s 350% more durable than the average bottom bar, the HDBB averts forklift damage to your service or insulated door. After the first impact, the door basically pays for itself and noticeably decreases future maintenance fees.

Rapid Response –Equipped with three or six feet of additional curtain and a sturdy bottom bar, RapidResponse makes slat repairs a snap with demountable lower guide sections.

Rolling Door Protector (RDP) –Say goodbye to expensive fork truck damage to rolling doors and hello to the RDP. The door withstands impacts due its creation of a physical barrier at the top.

Static Windload –Can be designed to combat the spectrum of specific wind load requirements, encompassing missle impact ratings.

Usage

The doors are constructed for daily use and can withstand operation of up to 20 cycles per day – that’s 50,000 cycles for the lifetime of the door.

Standard Materials and Finishes

Slats available in:

Galvanized Steel

Exterior Slat Gauge	GalvaNex Color
24	Gray, Tan, White, Brown
22	Gray, Tan
22	Gray, Tan
20	Gray, Tan, White, Brown
18	Gray, Tan, White

Stainless Steel

Exterior Slat Gauge	Finish
22	#4
