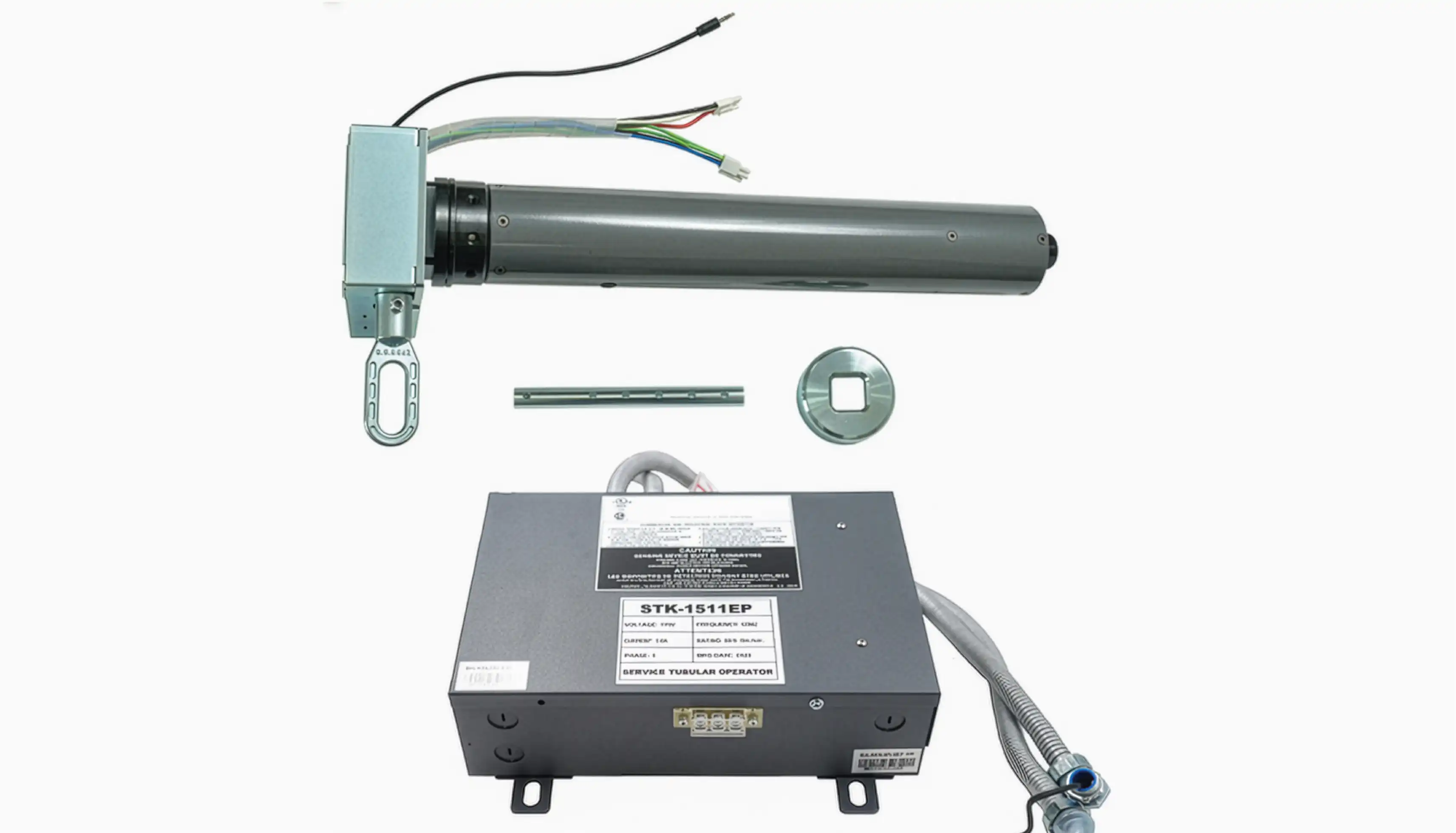

Tube Motor Operator

Security Grille

CESG10, CESG11, CESG12

Counter Door

CESC10 & CESC20

Counter Fire Door

CERC10 & CERC11

Technical Specifications

Power Supply: 120 V 60 Hz

Duty: 5 - 10 cycles/hour

Module for secondary monitored entrapment protection device

• Convenience of a motor in a low profile sleek design
• Easy to install and functionality consistent with our SGH operators
• Compact side room and light weight
• Improved daily cycle usage – 5 cycles/hour
• UL 325 listed
• Available in 3” and 4” type motors to work with a wide range of door sizes
• Auxiliary hand crank for emergency operation
• Cycle counter
• Terminal connection for a monitored entrapment protection device
• Onboard open and close limit signaling connections
• 24 VDC warning output signal when the door is moving
• Onboard Open/Close/Stop buttons
• Close override if the entrapment protection device short circuits
• Auto-Reset Thermal Protection - Prevents motor burnout
• Electronic Limit Switches - Ease of setting limits through 3button station at floor level
• Operator Safety Feature - Activating "Open", "Stop" or a remote transmitter button stops the movement of a closing door
• Pre-Wired for Sensing Edge/Sensing Devices - A sensing edge, photo eyes or other detection devices can be easily connected. Standard one second time delay prior to reversing prevents damage to door and operator
• Standard Exterior Radio-Control Terminal - Provides for easy and fast connection of radio controls
