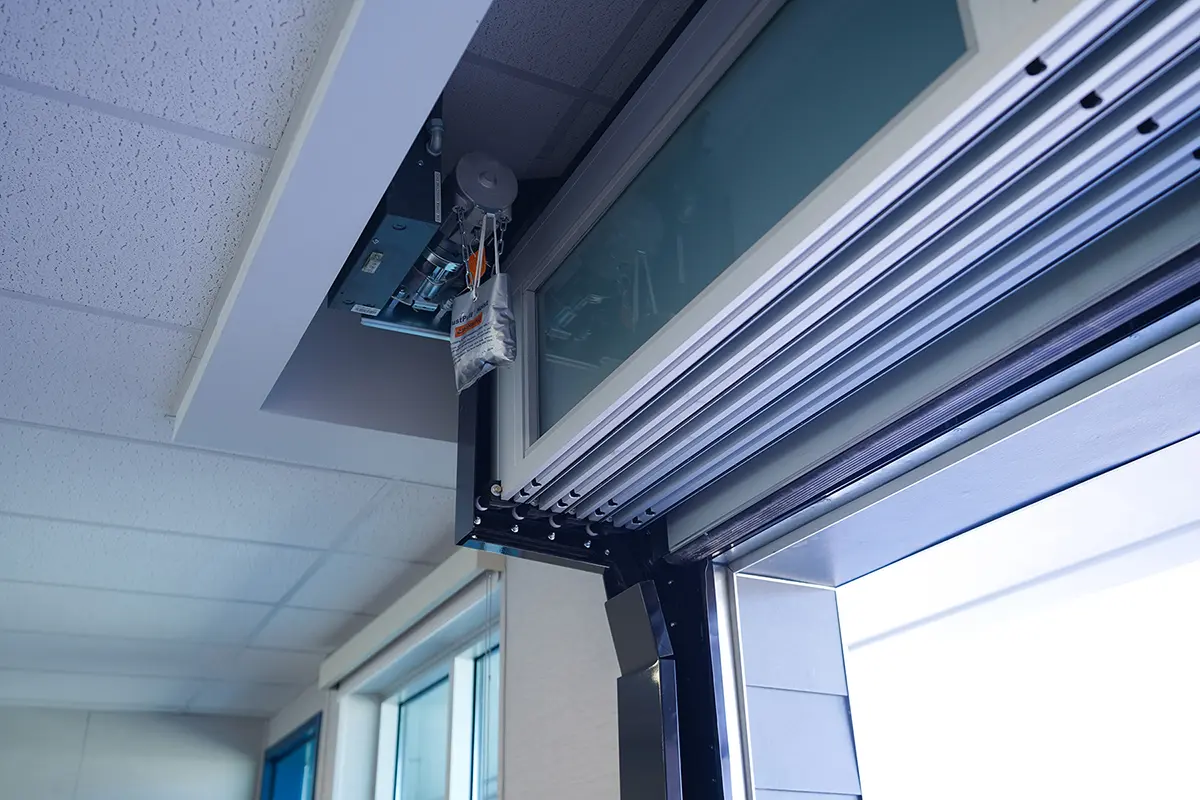

The VertiStack Clear door features a unique construction with sections that stack above the opening, eliminating the need for overhead tracks. This allows for a clear ceiling and won't conflict with mechanical, electrical or plumbing fixtures located in the ceiling. Designed with a clean, modern aesthetic, there are no hinges or exposed tracks or cables, and it is available with a variety of aluminum finishes and window materials.
VertiStack® Clear allows you to bring the outside in. These compact, vertically stacked sections take up minimal ceiling space so it won’t interfere with mechanical, electrical or plumbing fixtures.
The VertiStack Clear door features a unique construction with sections that stack above the opening, eliminating the need for overhead tracks. This allows for a clear ceiling and won't conflict with mechanical, electrical or plumbing fixtures located in the ceiling. Designed with a clean, modern aesthetic, there are no hinges or exposed tracks or cables, and it is available with a variety of aluminum finishes and window materials.
| Min Opening Width* | 4'6" |
| Max Opening Width* | 20'0" |
| Min Opening Height | 4'0" |
| Max Opening Height | 14'0" |
| Thickness | 2 1/8" |
| Insulation | N/A |
| Min Opening Width* | 4'6" |
| Max Opening Width* | 20'0" |
| Min Opening Height | 4'0" |
| Max Opening Height | 14'0" |
| Thickness | 2 1/8" |
| Insulation | Intellicore insulated rails & stiles |
*The door will always be 6” wider than the opening width, so door width range is 5’0 to 20’6”.
This product is available for commercial applications only, click here for the residential version.
For interior mount only.
| Door Opening Width* | Number of Panels |
| 4'6" - 8'8" | 2 |
| 8'9"-12'8" | 3 |
| 12'9"-15'8" | 4 |
| 15'9"-19'8" | 5 |
| 19'9"-20'0" | 6 |
| Door Height | Number of Sections |
| 4'0"-5'8" | 3 |
| 5'9"-7'0" | 4 |
| 7'1"-8'4" | 5 |
| 8'5"-9'8" | 6 |
| 9'9"-11'2" | 7 |
| 11'3"-12'8" | 8 |
| 12'9"-14'0" | 9 |
Florida Product Approval #FL42132
 FULL-VIEW (VS904/VS904U) |
*Mirrored and laminate not available in 1/2"
Glass thickness available in 1/8", 1/4" and 1/2". Tri-wall polycarbonate thickness available in 5/8".
**Tempered glass options available
*Additional cost and lead time may apply. The use of “Bronze (Painted)” is recommended due to slight color variation that may occur during the anodizing process.
This product is available for commercial applications only, not for residential applications at this time.
Strap Brake Safety System
Situated at the bottom section of the door and within the wall angles, this system is triggered when strap tension is lost. It releases the brake lever and engages the brake teeth to prevent the bottom and subsequent sections from falling.
VertiStack™ Clear commercial doors have a clean, modern look and compact stacking sections that save ceiling space.
Explore Brochure
At Clopay, we take form and function seriously. From blueprints to reality, our expert engineers design commercial doors that exceed expectations for performance and elevated style.
Explore Brochure25,000 cycle torsion springs
Section locking devices on both sides of the door for increased security
High-strength strap assembly
Commercial 10 ball rollers
2” track mounted to a full-height 12-gauge wall angle
This product is available for commercial applications only, not for residential applications at this time.
Learn more about our VertiStack Clear Door
Sporting a sleek, modern aesthetic, our door offers no visible hinges, tracks or cables. Plus, you've got a range of aluminum finishes and window materials to choose from. Enjoy the blend of style and function!
