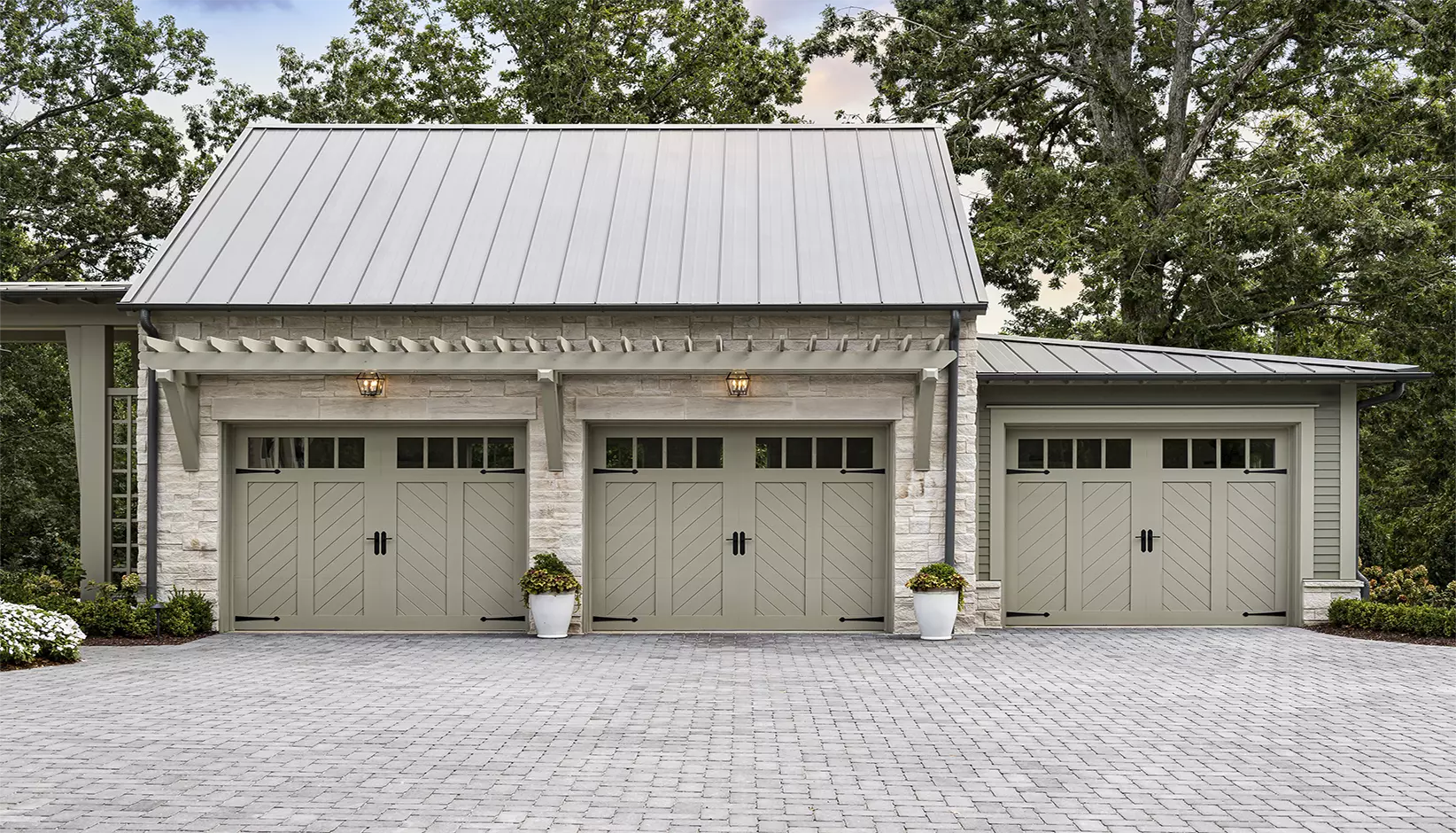

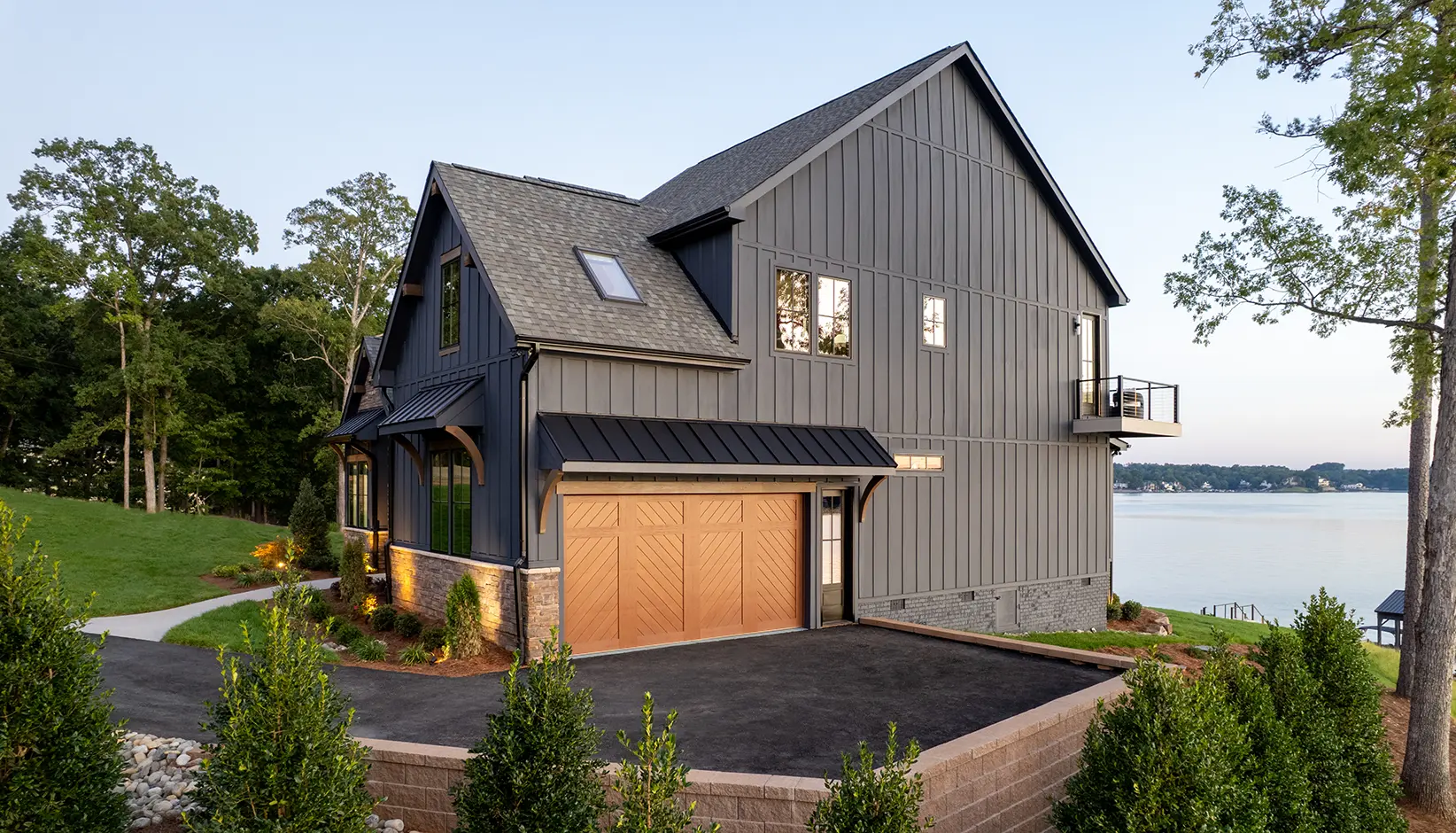

Canyon Ridge^® Chevron

Chevron Style, Built to Last

Hardy 5-Layer Construction

The Canyon Ridge® Chevron door features a tough, five-layer build—steel, insulation, steel, composite cladding, and a composite overlay—that delivers lasting strength and a premium finish.

Genuine Wood Appeal

Get the warmth and character of wood without the upkeep. The faux wood composite cladding and overlays are molded from real wood pieces, so you see every beautiful grain and texture.

Signature Chevron Design

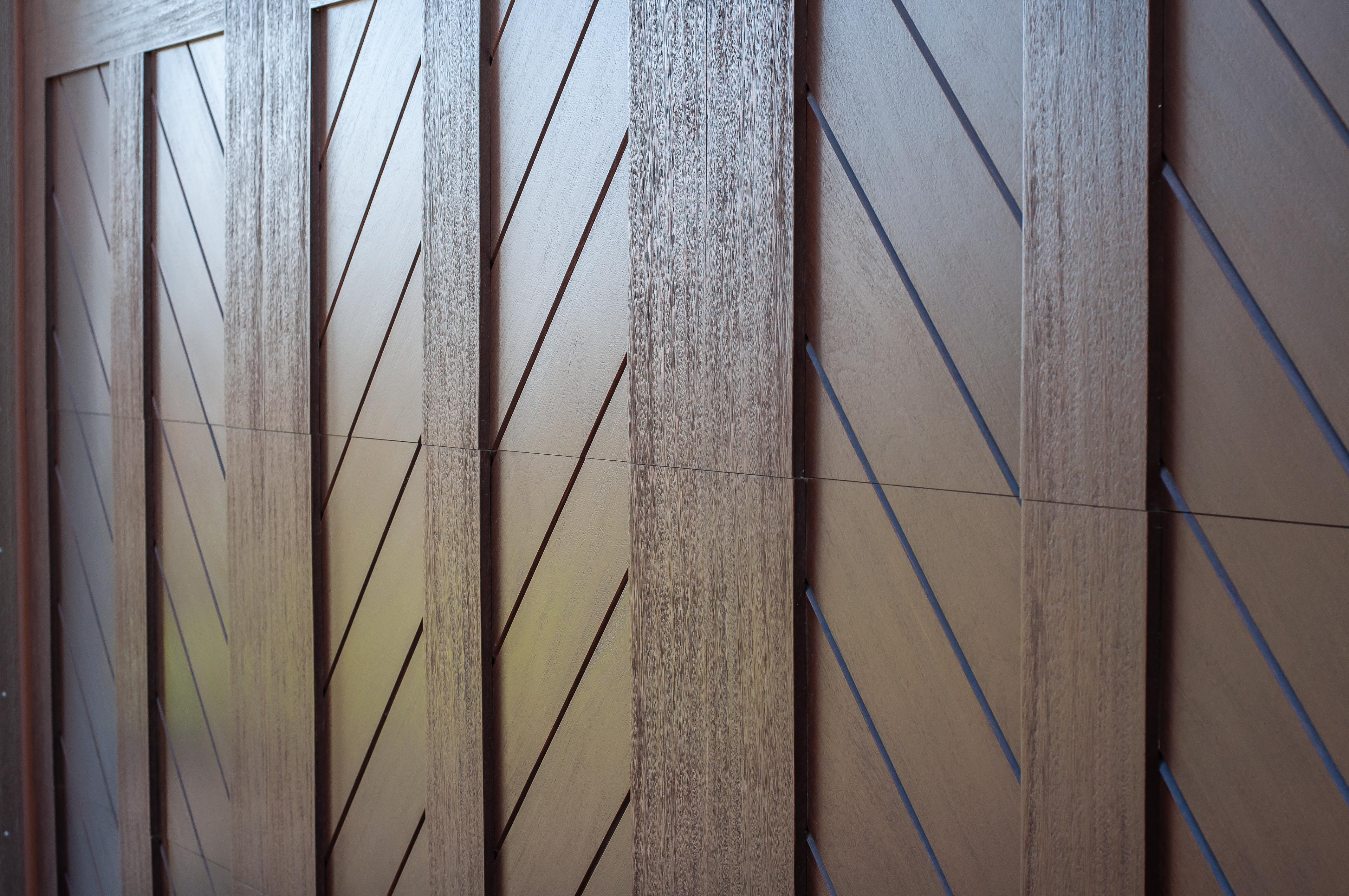

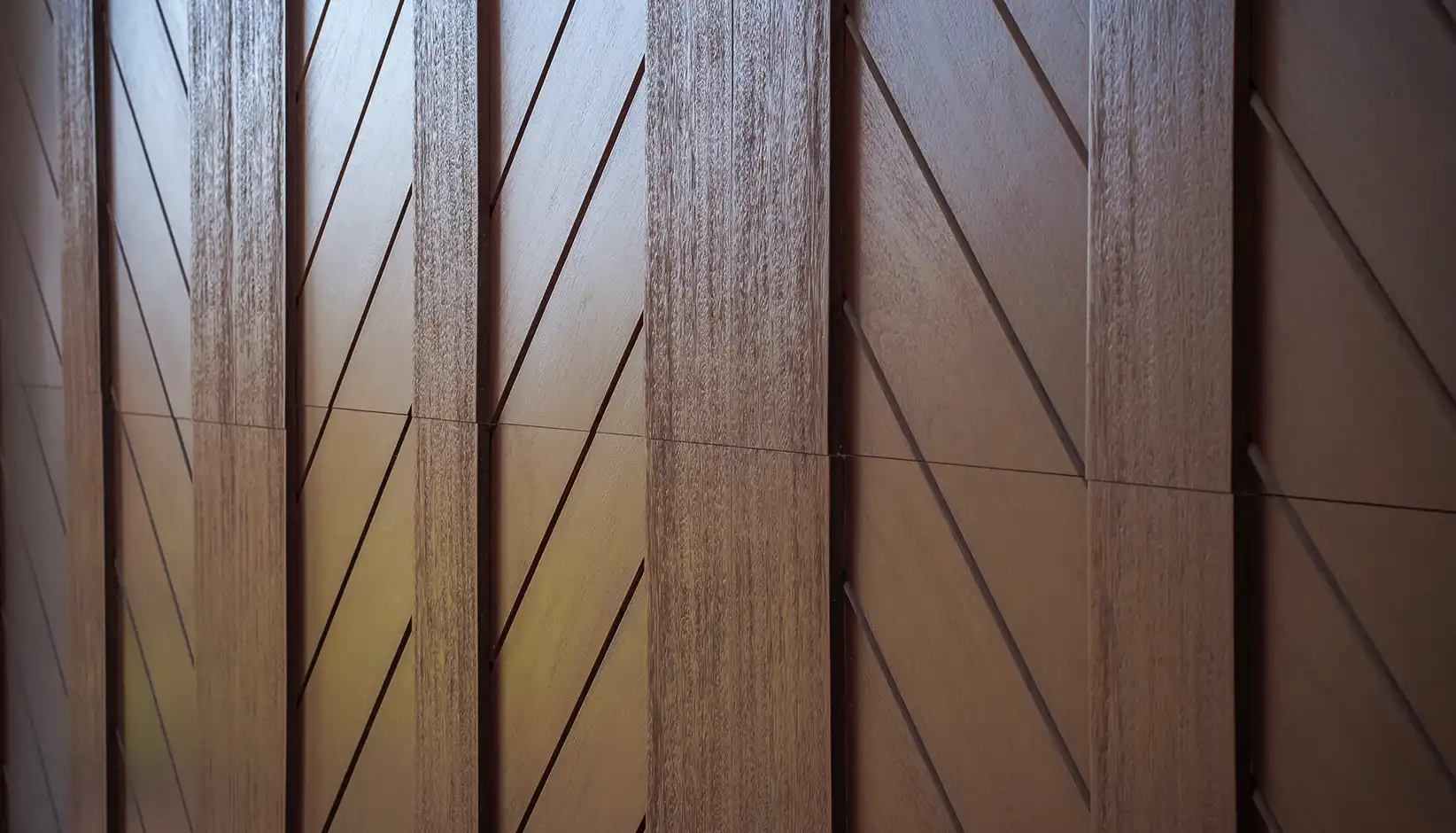

Each cladding piece is precision-cut at a 45-degree angle, forming the bold chevron “V” pattern that sets this door apart. With 15 design variations and four unique patterns, you can make a statement that’s all your own.

Endless Customization

Choose from Clear Cypress or Mahogany, available in ten standard finishes or over 1,500 Color Blast® custom paint colors. Add optional windows and decorative hardware for a personalized touch.

Superior Insulation

2” Intellicore® polyurethane foam delivers an impressive 20.4 R-value, helping keep your garage more comfortable all year.

Ready for Any Climate

Ask about WindCode® reinforcement for extra protection in high-wind areas.

Environmental Assurance

Clopay doors are compliant with environmental laws and regulations. Clopay doors do not contain HFCs. All Clopay doors are compliant with:

• California SB 1013
• Washington HB 1112 – Hydrofluorocarbon Greenhouse Gas Emissions
• Canadian regulations amending the ozone-depleting substances and halocarbon alternatives regulations
• New Jersey A-5583/S-3919 – Greenhouse Gas Bill

Designed to Catch Your Eye

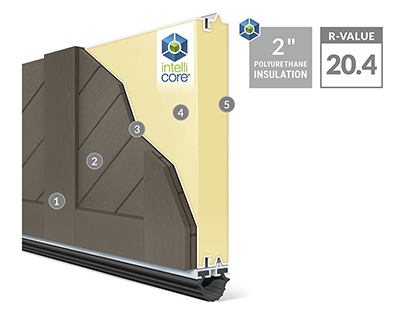

The Canyon Ridge® Chevron garage door is crafted with a 5-layer construction that delivers both durability and standout curb appeal. At its core, a tough steel base provides strength and stability, while 2" of Intellicore® polyurethane foam insulation boosts energy efficiency with a remarkable 20.4 R-value, helping to keep your garage quieter and more comfortable.

On top of the steel, a second layer of steel adds extra resilience. The exterior features composite cladding and overlay, both molded from real wood to capture authentic grain patterns and natural texture. This advanced composite material resists moisture, rot, and cracking, so you get the classic look of wood without the maintenance headaches.

Corrosion-resistant hot-dipped galvanized steel skins, a baked-on primer, and topcoat ensure lasting protection from the elements. Additional safety features like patented Safe-T-Bracket® and sturdy hardware complete the package, making this door as reliable as it is beautiful.

1. Composite Overlay
2. Composite Cladding
3. Steel
4. 2" Intellicore® Polyurethane Insulation
5. Steel

The Canyon Ridge® Chevron offers a wide range of design configurations to fit any style preference. Choose from several chevron patterns, each one defined by the angle and arrangement of planks cut at a crisp 45 degrees for that signature “V” effect. You can opt for bold, wide-plank designs for a dramatic, modern look or go with narrower planks for something more subtle and traditional.

The top section of the door is just as versatile. You can opt for no windows for a solid look in an uninterrupted chevron pattern or add windows in various layouts to let in natural light and create visual interest.

With multiple cladding design options, you can fine-tune every detail and make a strong statement that fits your personal taste.

• Door Designs

• Top Sections

• Specialty Glass Options

• Material Options

• Colors

• Hardware

Design 11

Design 12

Design 13

Design 31

Design 32

Design 33

Design 36

Design 37

Cladding Design Options

Option-A

Option-D

Option-U

Option-V

ARCH1A-SQL

ARCH1-SQL

TOP11

TOP 12

TOP 13

Window Designs

REC11

REC13

REC14

SQ23

SQ24

ARCH1

ARCH3

ARCH4

ARCH13

ARCH14

The Canyon Ridge® Chevron lets you customize the top section of your garage door to match your home’s style and your personal taste. Whether you want arches to make it look more like a carriage house door or a row of crisp, square windows for a modern touch, the range of top section options makes it easy to personalize your door.

Choose from solid, non-window sections for a sleek, uninterrupted chevron look, or add windows for extra light and architectural interest. Window configurations include a wide variety of shapes and arrangements, from classic rectangular windows (like REC11, REC13, REC14) to square designs (SQ23, SQ24) and several arched options (ARCH1, ARCH3, ARCH4, ARCH13, ARCH14) for a more traditional or decorative feel. You can opt for single or multi-pane layouts and select from different top section patterns such as TOP11, TOP12, or TOP13, each offering a distinct look.

Clear

Seeded

Rain

Frosted

Obscure

A Canyon Ridge® Chevron garage door offers a variety of specialty glass options designed to balance natural light, style, and privacy. Choose clear glass for an open, airy look that lets in plenty of sunlight. If you’d like to soften the view or add a decorative touch, opt for seeded or rain glass, both of which diffuse light and introduce subtle texture. Frosted and obscure glass options provide extra privacy, making them ideal for garages that face the street or neighboring homes.

For homeowners in high-wind or storm-prone areas, impact-rated windows are available but please note, these are offered exclusively in clear glass.

Composite Cladding Materials

Clear Cypress

Mahogany

Composite Overlay Materials

Clear Cypress

Mahogany

The Canyon Ridge® Chevron offers a premium selection of cladding and overlay materials that give your garage door the look and feel of real wood with none of the upkeep. Choose from two distinct faux wood species—Clear Cypress and Mahogany—each available for both the cladding and the overlay. Clear Cypress brings a fine, straight grain and a modern, understated texture, while Mahogany offers a richer, deeper grain for a classic, elegant appearance.

You can mix and match these composite options to create your own custom look, combining different species for unique contrast or opting for a seamless, uniform finish. The advanced composite materials are molded from real wood pieces, so every panel captures authentic grain patterns and natural depth. Durable and low maintenance, these materials resist moisture, rot, and cracking, ensuring your door looks beautiful for years with minimal effort, no matter which combination you choose.

Natural Finish

Medium Finish

Dark Finish

Walnut Finish

Slate Finish

Espresso Finish

Black Finish*

White Finish*

Primed (No Finish)

Bronze*

Charcoal*

The Canyon Ridge® Chevron gives you a wide palette of finishes to perfectly complement your home’s style and bring out the unique chevron pattern. Choose from warm, wood-inspired stains like Natural, Medium, Dark, or Walnut for a rich, authentic look that highlights the detailed grain of the composite cladding and overlay.

For a more contemporary vibe, Slate and Espresso finishes offer cool, sophisticated tones that work beautifully with modern exteriors.

Looking for something especially striking? Select models in Mahogany offer exclusive colors like Black, White, Bronze, and Charcoal for a bold, distinctive statement. If you’re after a unique combination, the two-tone option lets you pick one color for the base steel layer and another for the composite overlay, creating a custom layered effect.

Prefer to start with a blank slate? Opt for the primed, no-finish door, ready for your own paint or stain. And if you want a truly personal touch, the ColorBlast® program opens up more than 1,500 custom color possibilities—so you can match your door to virtually any color scheme.

Request Color Samples

*Available on select models.
Black, white, bronze and charcoal only available in Mahogany.
Two-tone option available. One color for the base layer (steel) and one color for the top layer (composite overlay).

Handles

Spade Lift Handles
(included)

Spear Lift Handles

Colonial Lift Handles

Decorative Lift Handles

Ring Door Knocker

Escutcheon Plates

Twisted "L" Handles

Plates

Spade Step Plate

Spear Step Plate

Colonial Step Plate

Hinges

Spade Strap Hinge

Spear Strap Hinge

Colonial Strap Hinge

Personalize your Canyon Ridge® Chevron garage door with a range of hardware choices that blend functionality and style. Each door comes standard with spade lift handles—a classic, versatile option that suits almost any exterior. For a more customized look, upgrade to spear or colonial lift handles, or choose decorative lift handles to add a unique touch.

You can enhance your door’s character with optional accents like the ring door knocker, escutcheon plates, or twisted "L" handles for a rustic, handcrafted feel. Step plates are available in spade, spear, or colonial designs, not only protecting your door but also adding a subtle decorative element.

Complete the look with matching strap hinges in spade, spear, or colonial styles—these can be both functional and decorative, giving your door the timeless charm of classic carriage house hardware.
