TruCycle™ Door
Your business is always moving, and your commercial doors need to keep up. When you need the durability of a higher-speed door without the premium speed, the TruCycle™ Service Door is your answer. This ultra-high-cycle door bridges the gap between service doors and higher-speed options, delivering powerful reliability. We eliminated the springs—the top reason commercial doors fail—engineering a low-maintenance door that just won't quit. A powerful direct-drive operator with a motor-mounted VFD ensures smooth, quiet operation and longevity, making it ideal for busy logistics hubs and parking garages. Plus, it pairs with our smallest-ever APEX™ Core SmartController® with plug-and-play connections and from-ground commissioning.
You no longer have to choose between durability and cost. The TruCycle™ Door delivers the resilience of a high-speed door without the price tag. Get peace of mind from a low-maintenance, high-cycle door without paying for speed you don’t need. It is available in a standard or insulated model and includes an industry-leading 3-year or 500,000-cycle warranty. For advanced thermal performance, the insulated model (CHCESD30) slashes air infiltration by up to 94%*.
*Compared to standard doors. Results based on third-party testing against a standard, non-insulated rolling door.
Enter your zip code to find your local dealer
CHCESD10 (service door curtain)
CHCESD30 (insulated curtain)
Windload Options
Static up to 50 PSF design wind-load.
Operational up to 10 PSF maximum wind-load.
Safety & Protection
SafetyGard UL325 Approved Light Curtain - A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.
Unique Features
APEX Core SmartController - This IP54 (NEMA 3 equivalent) controller features plug-and-play connections to operator and standard sensors to reduce installation time. Its compact panel features an LCD screen for guided commissioning, electronic limit setting, and status/error messaging. A NEMA 4 upgrade is available.
Monitored Protection - Standard UL 325-2010 compliant, NEMA 4X-rated photo eyes allow for momentary contact operation. Interruption of the beam immediately halts and reverses the grille to the fully open position. The photo eyes are shipped loose as standard.
120V Compatibility - The system is compatible with 120V input via an optional wall-mounted transformer. The required mounting space is 13.5" wide by 16.125" high.
SmartSync Diagnostic Tool - Connect the SmartSync Diagnostic Tool to the APEX controller for instant door or grille diagnostics. This tool empowers field technicians and Electrical Support Specialists to effortlessly diagnose, repair, and resolve issues with the APEX controller—streamlining your workflows and helping customers get back to business.
Sizes
Max Width: 30'
Max Height: 20'
For openings that fall outside of the standard construction, please contact us
Usage
These doors are designed to handle heavy, continuous traffic.
To ensure consistent, cycle-to-cycle performance, every TruCycle Door includes a powerful 3-year or 500,000-cycle warranty, whichever comes first.
Standard Materials and Finishes
TruCycle Doors come with a unique and lasting powder coat finish customized for high-cycle usage as standard. There are two material options for both the service and insulated curtain:
Galvanized steel:
- Finished with a rust-inhibiting CycleShield® finish in Gray, Tan or White
- The CycleShield finish for High Performance Doors. The base coat is consistent with ASTM A653, and is finished with a baked-on polyester powder coating. CycleShield is:
- Friction and wear-resistant for high-cycle applications
- Rust inhibiting and resistant to acids, alkalis and oils at normal temperatures
- Recommended for exterior, corrosive and/or abrasive environments
- Available as an option in a palette of more than 180 standard RAL colors
- For a more durable finish, upgrade to CycleShield® Ultra™ powder coat finish. It is a polyester-based, textured, wear-resistant clear coat that provides improved durability against deterioration and/or marring of the curtain during regular use.
- 300 series stainless steel with a #4 finish
Finish/gauge availability varies. Contact us for detailed finish/gauge availability or special requests.
Operation
The TruCycle Door utilizes a direct-drive operator with a motor-mounted Variable Frequency Drive (VFD). This provides precision control and allows for a soft start and stop, extending the life of your door system. The operating system pairs with the APEX™ Core SmartController, putting reliable performance diagnostics at your fingertips.
Model
BIM
Shop Drawing
Specs
Installation Manual
Warranty
BIM
-Shop Drawing
-Specifications
-Installation Manual
-Warranty
-TruCycle Door

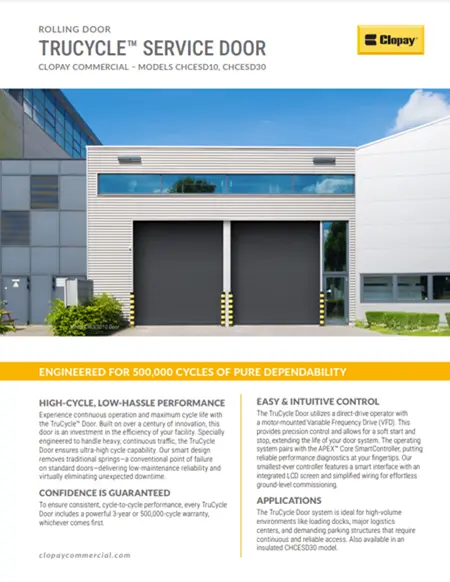

TruCycle Door Feature Sheet

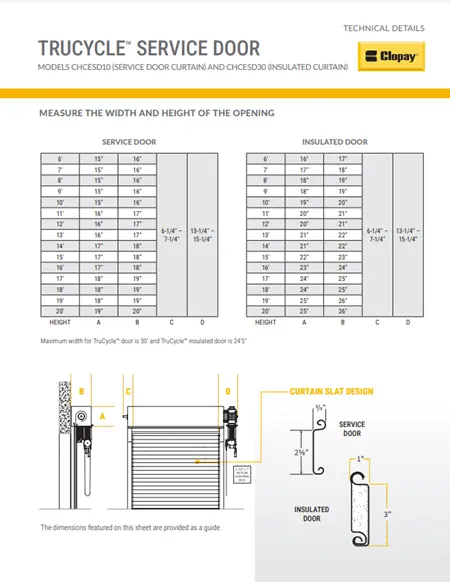

TruCycle Door Technical Details
