TruCycle™ Grille
Your facility needs a security grille that is always ready for business. For security, visibility, and airflow you can count on, the TruCycle™ High-Cycle Security Grille is the ideal solution. It strikes a perfect balance, offering greater efficiency than a standard rolling security grille and better economy than a higher-speed model, while keeping your facility secure and accessible. We eliminated the springs, the primary reason for failure, engineering a truly minimal-maintenance grille. A powerful direct-drive operator and VFD ensure smooth, quiet operation, which dramatically extends the grille’s lifespan. We also paired it with our smallest-ever APEX™ Core SmartController®, simplifying from-ground setup and commissioning.
The TruCycle Grille is ideal for the non-stop traffic of a parking garage or a busy retail storefront.
Don’t compromise. Get the open-air security of a standard grille combined with the uptime of a high-speed model. This peace of mind comes from a low-maintenance, high-cycle grille that delivers exceptional value. Available in both brick and straight patterns to suit your aesthetic, it is also backed by our industry-leading 3-year or 300,000-cycle warranty.
Enter your zip code to find your local dealer
CHCESG10 (straight)
CHCESG12 (brick)
Safety & Protection
SafetyGard UL325 Approved Light Curtain - A UL325 approved non-contact primary entrapment device that prevents damage to an object in the door’s pathway in addition to minimizing damage to the closure itself.
Unique Features
APEX Core SmartController - This IP54 (NEMA 3 equivalent) controller features plug-and-play connections to operator and standard sensors to reduce installation time. Its compact panel features an LCD screen for guided commissioning, electronic limit setting, and status/error messaging. A NEMA 4 upgrade is available.
Monitored Protection - Standard UL 325-2010 compliant, NEMA 4X-rated photo eyes allow for momentary contact operation. Interruption of the beam immediately halts and reverses the grille to the fully open position. The photo eyes are shipped loose as standard.
120V Compatibility - The system is compatible with 120V input via an optional wall-mounted transformer. The required mounting space is 13.5" wide by 16.125" high.
Sizes
Max Width: 30'4"
Max Height: 19'
For openings that fall outside of the standard construction, please contact us.
Usage
These grille are designed to handle heavy, continuous traffic.
To ensure consistent, cycle-to-cycle performance, every TruCycle Grille includes a powerful 3-year or 300,000-cycle warranty, whichever comes first.
Standard Materials and Finishes
The TruCycle Grille open air design provides increased visibility and ventilation. Curtains are assembled with heavy duty 5/16” diameter aluminum alloy rods spaced at 2” on the center with aluminum tube spacers specifically placed to create two pattern options:
- Brick Pattern
- Straight Pattern
Curtains can come in the following finishes:
- Mill
- Clear anodized
- Medium bronze anodized
- Dark bronze anodized
- Black duranodic
Operation
The TruCycle Grille utilizes a direct drive operator with a motor-mounted Variable Frequency Drive (VFD). This provides precision control and allows for a soft start and stop, extending the life of your grille system and ensuring quiet operation. The operator system pairs with the APEX Core SmartController®, putting reliable performance diagnostics at your fingertips.
Model
BIM
Shop Drawing
Specs
Installation Manual
Warranty
BIM
-Shop Drawing
-Specifications
-Installation Manual
-Warranty
-TruCycle Grille
TruCycle Grille Technical Details

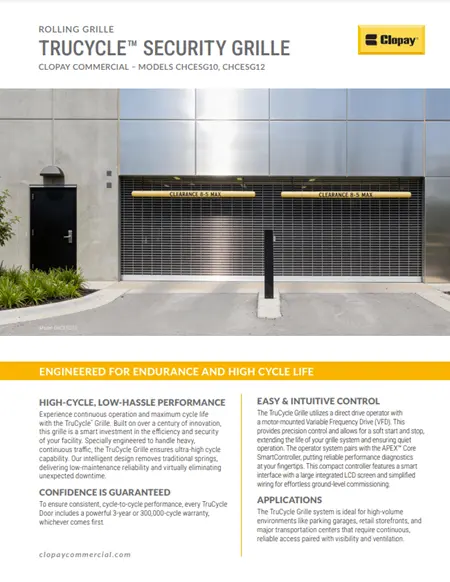

TruCycle Grille Feature Sheet

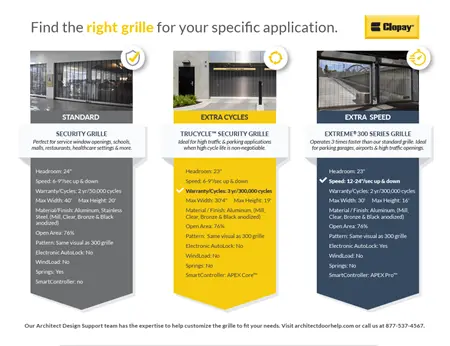

Find the Right Grille Comparison
